Test & Measurement

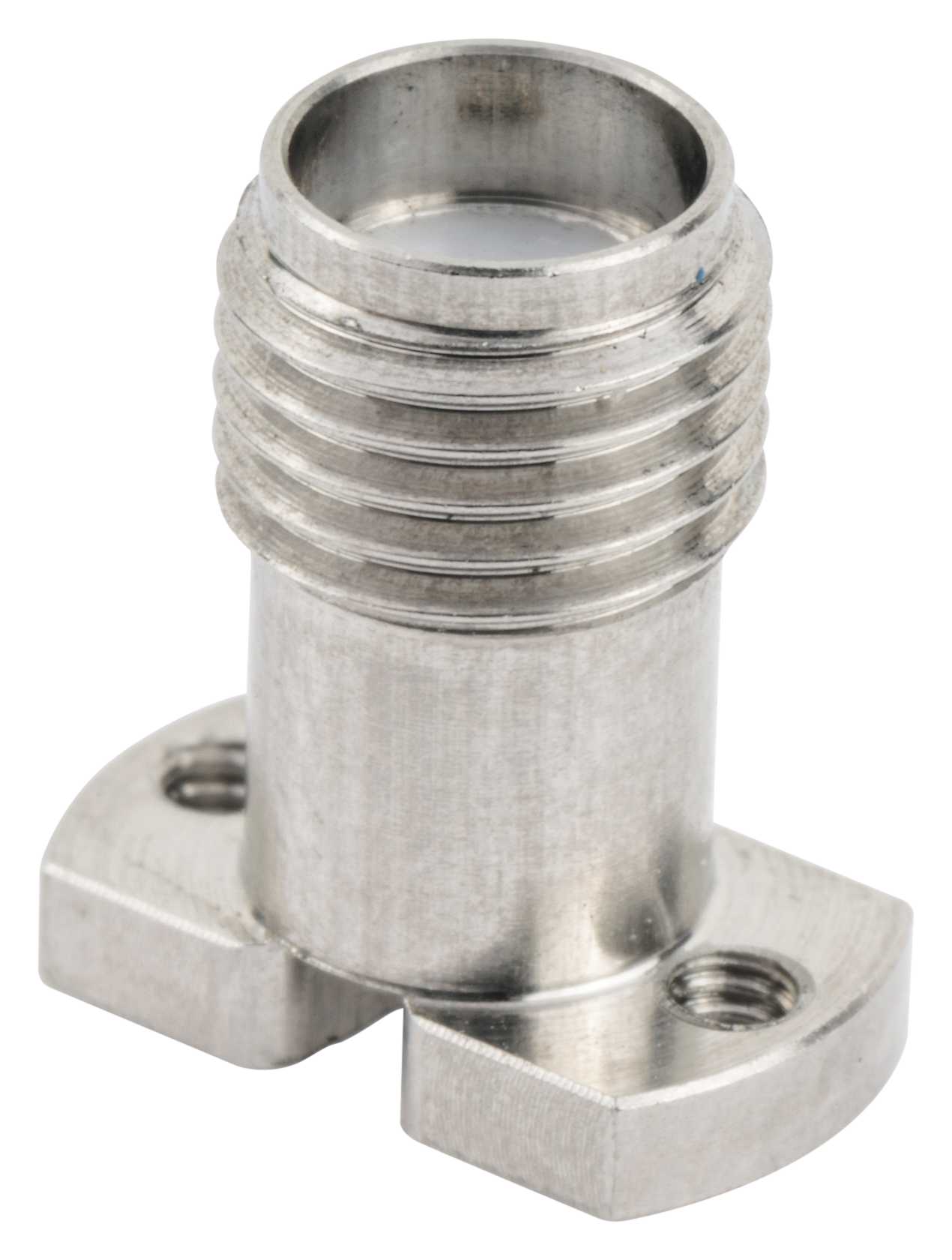

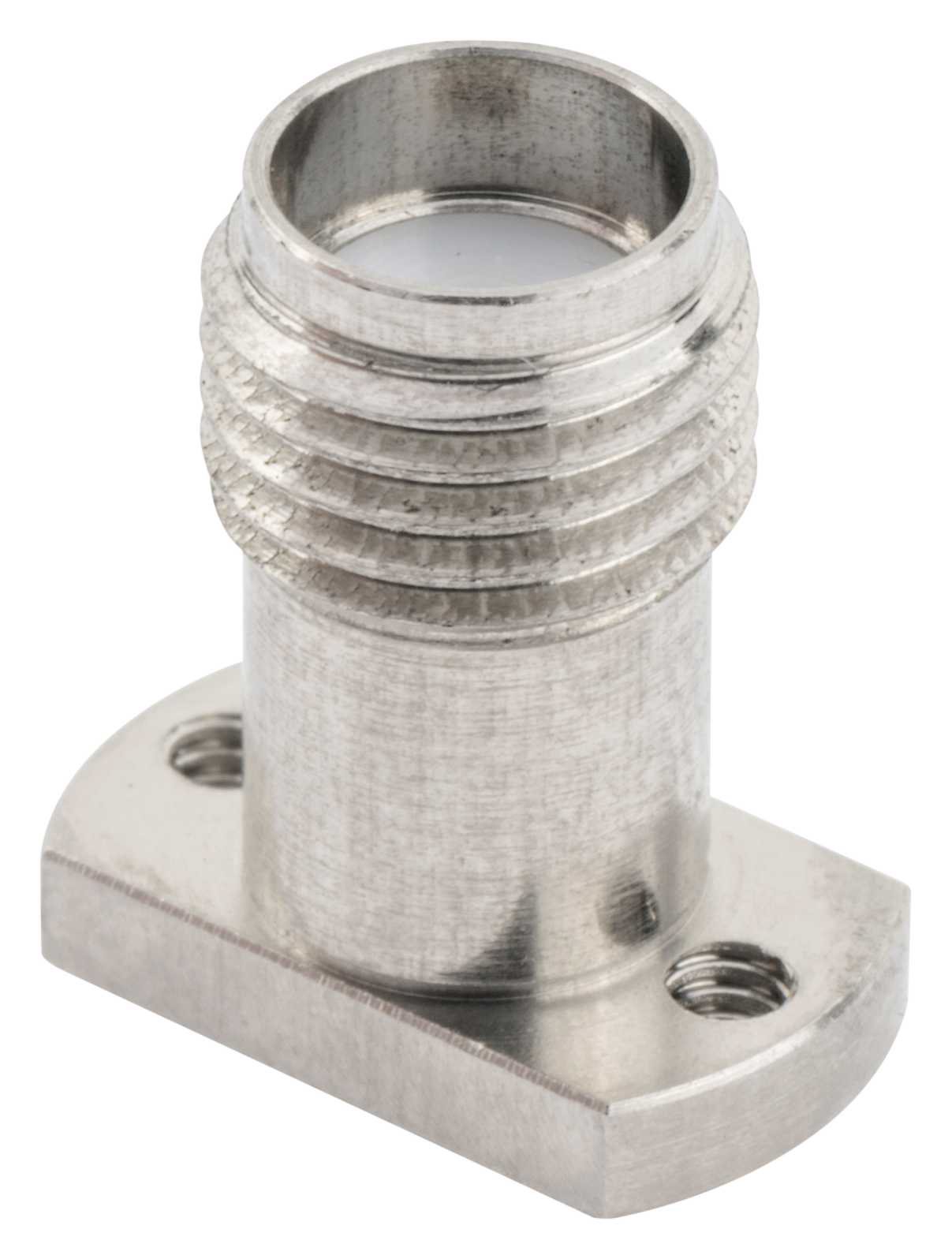

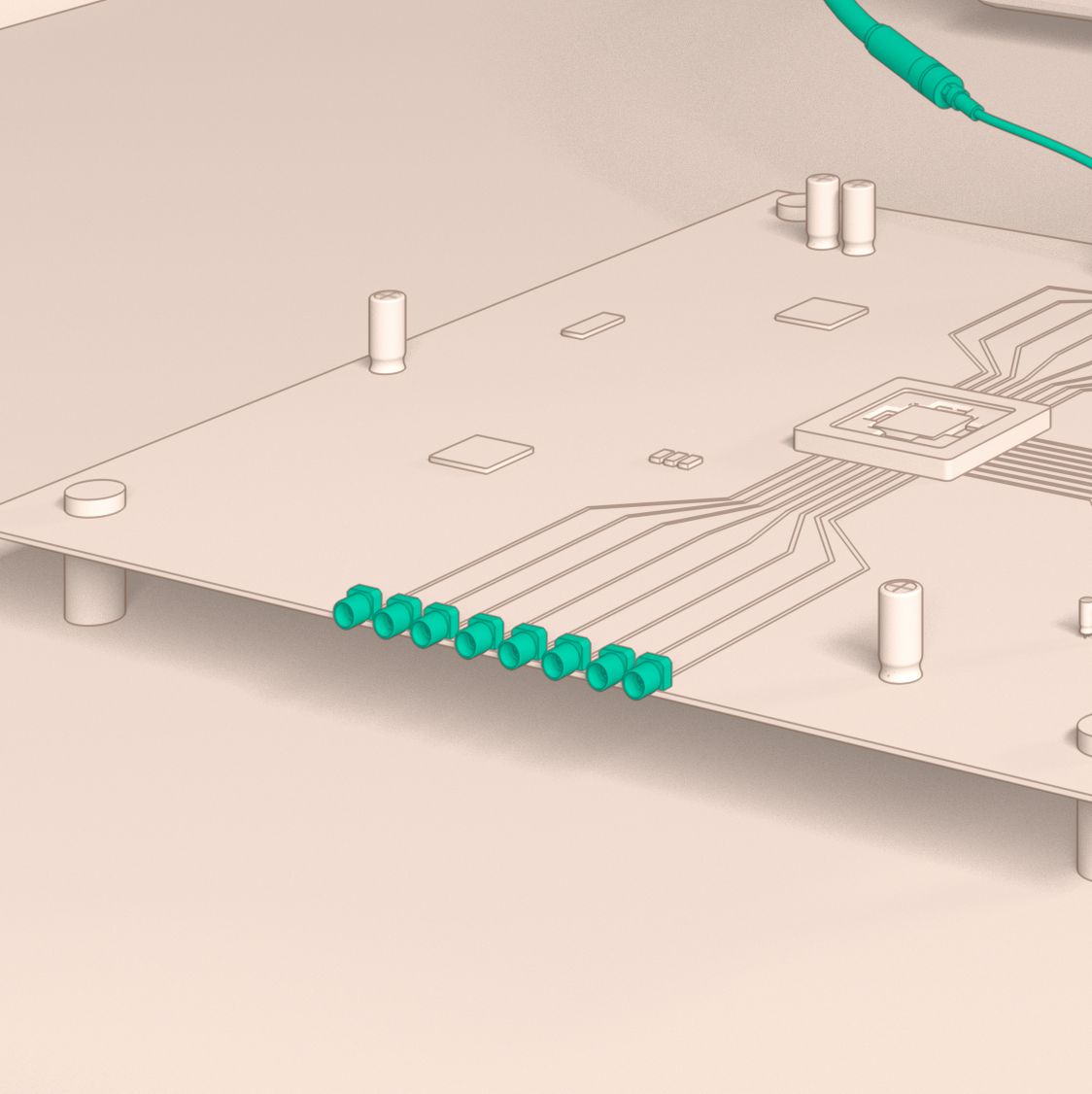

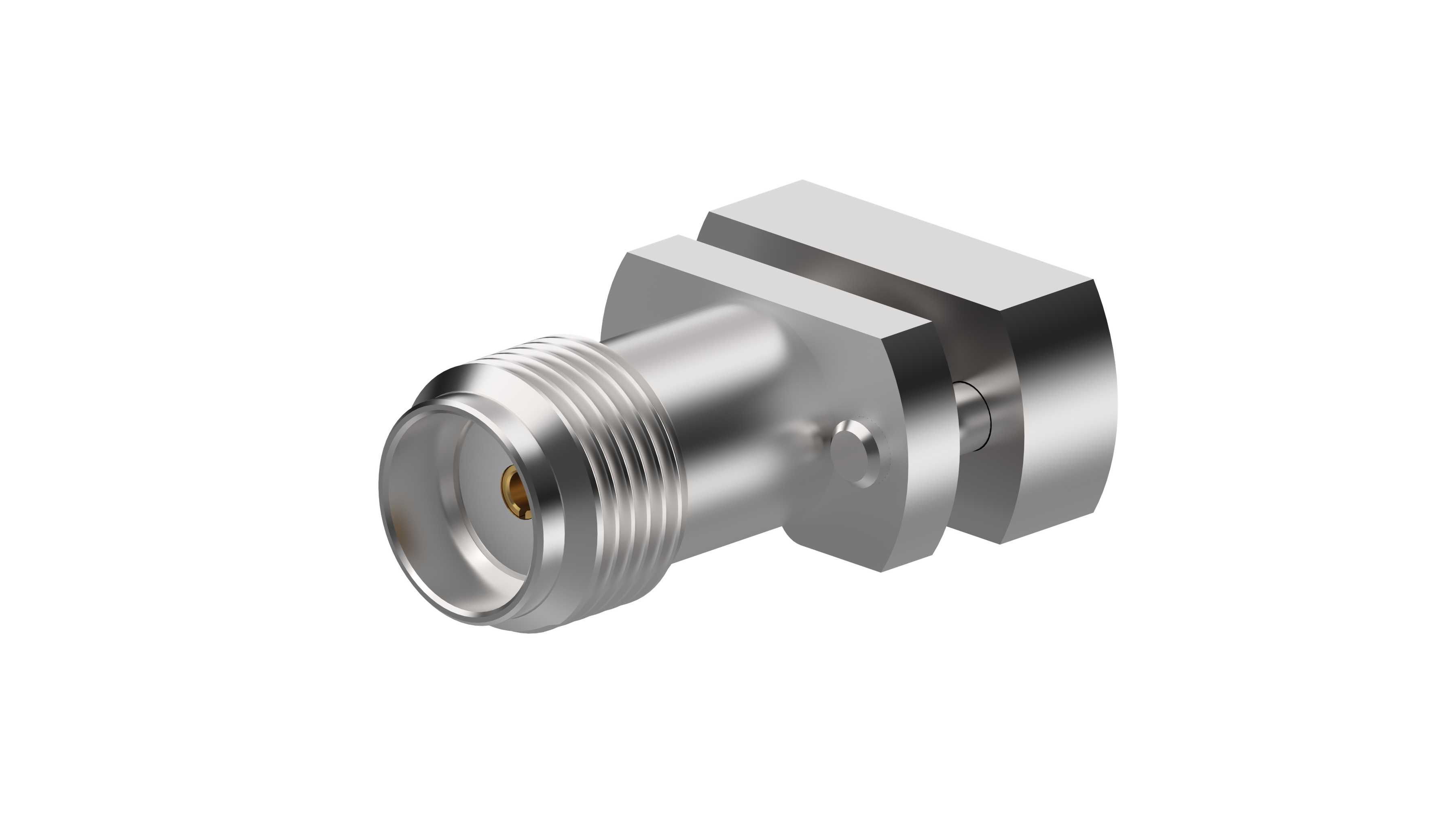

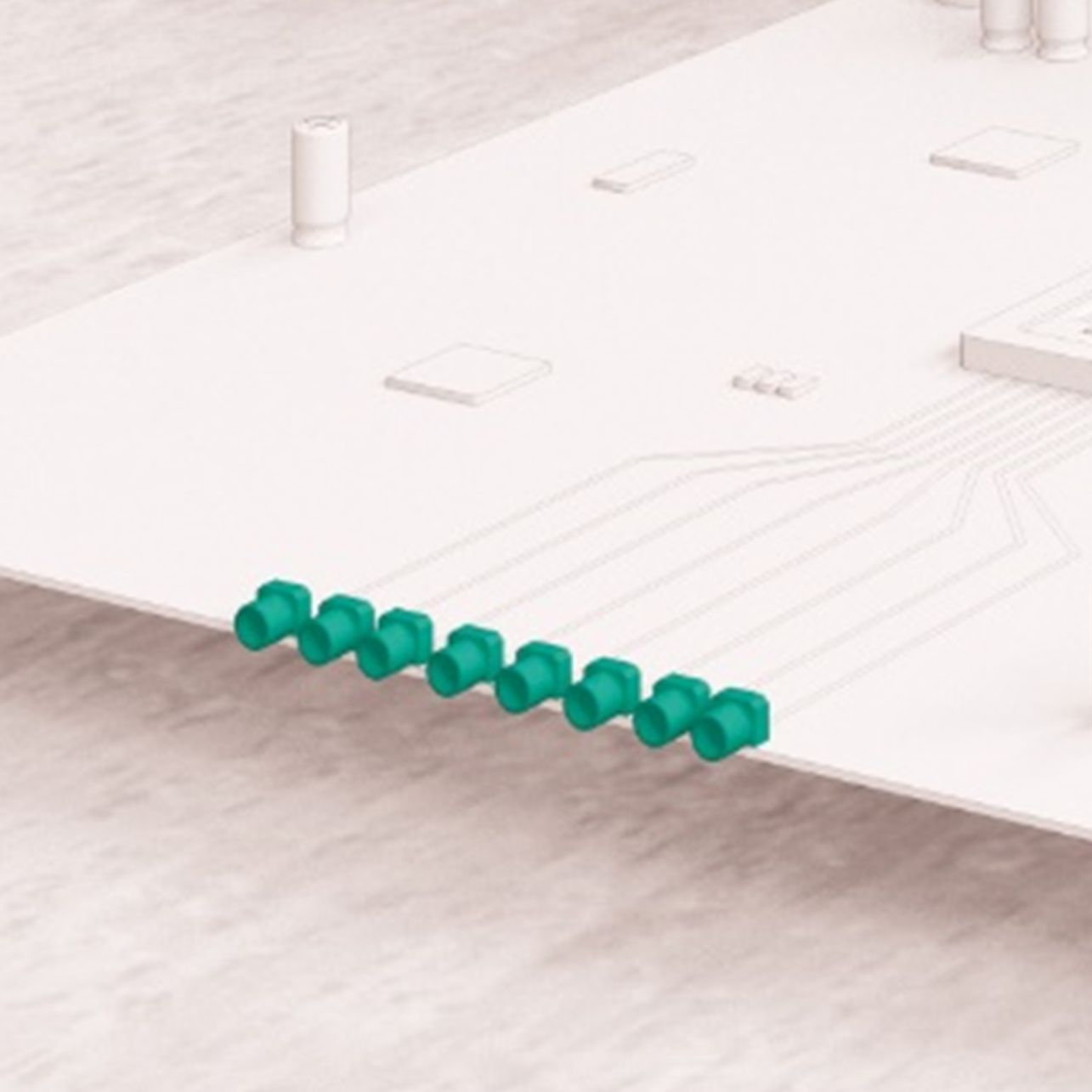

The HUBER+SUHNER solderless compression mount connector portfolio is ideal for test and characterization boards, high-speed digital evaluation and reference boards or internal connectivity in systems where fast and easy installation and removal is mandatory. Our customers do have the advantage of reusing the same connectors across multiple programs due to their robust mechanical design while still receiving excellent reproducibility of electrical values.

Features:

• Fast and easy installation
• Precision testing up to 110 GHz
• Reusable design
• Small form factor
• Short delivery time.

**Download the brochure and choose the connector you need.

Then navigate to “Products” in the main menu, click on to the «Filter» button and enter the item number to find additional information.

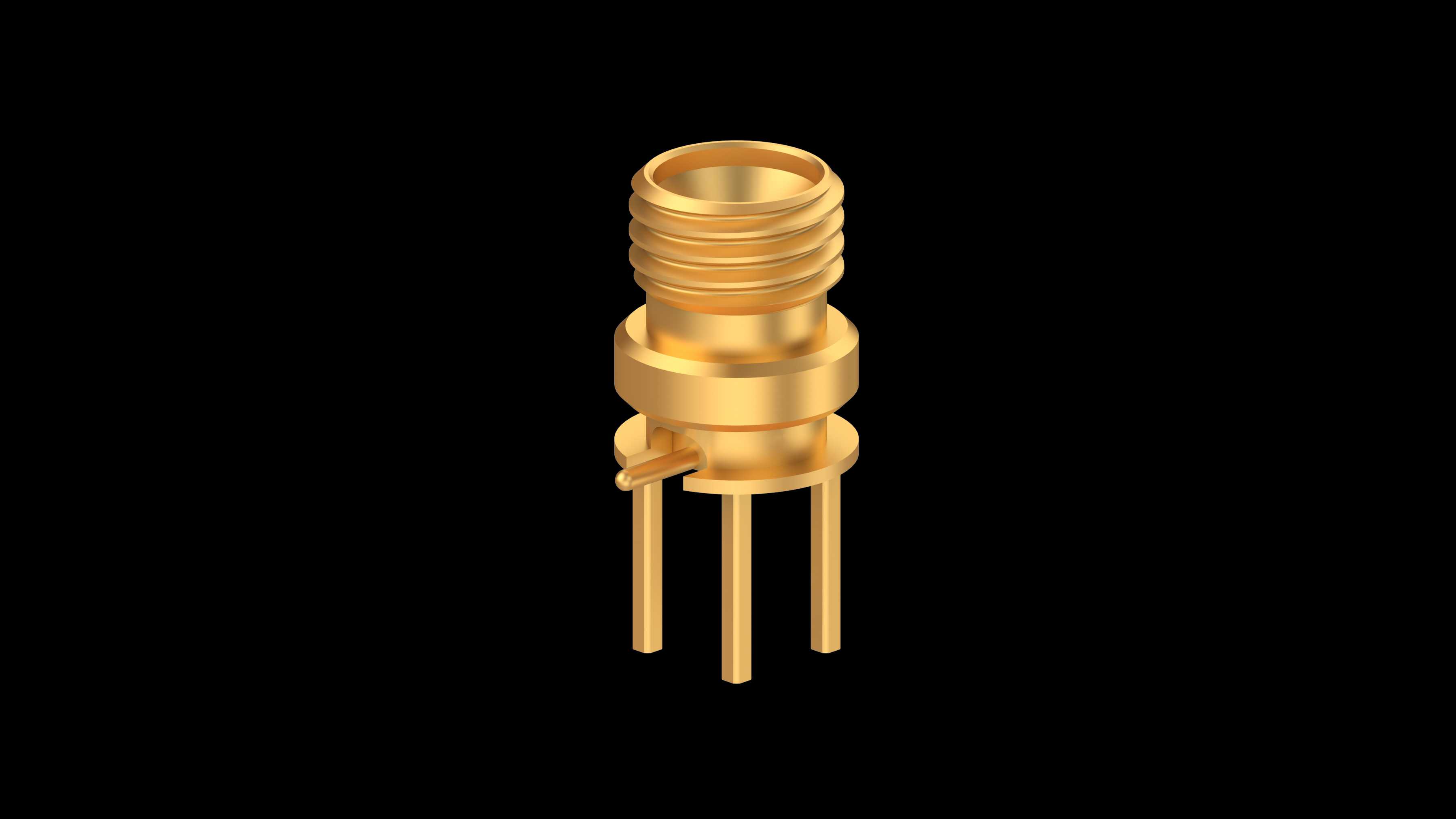

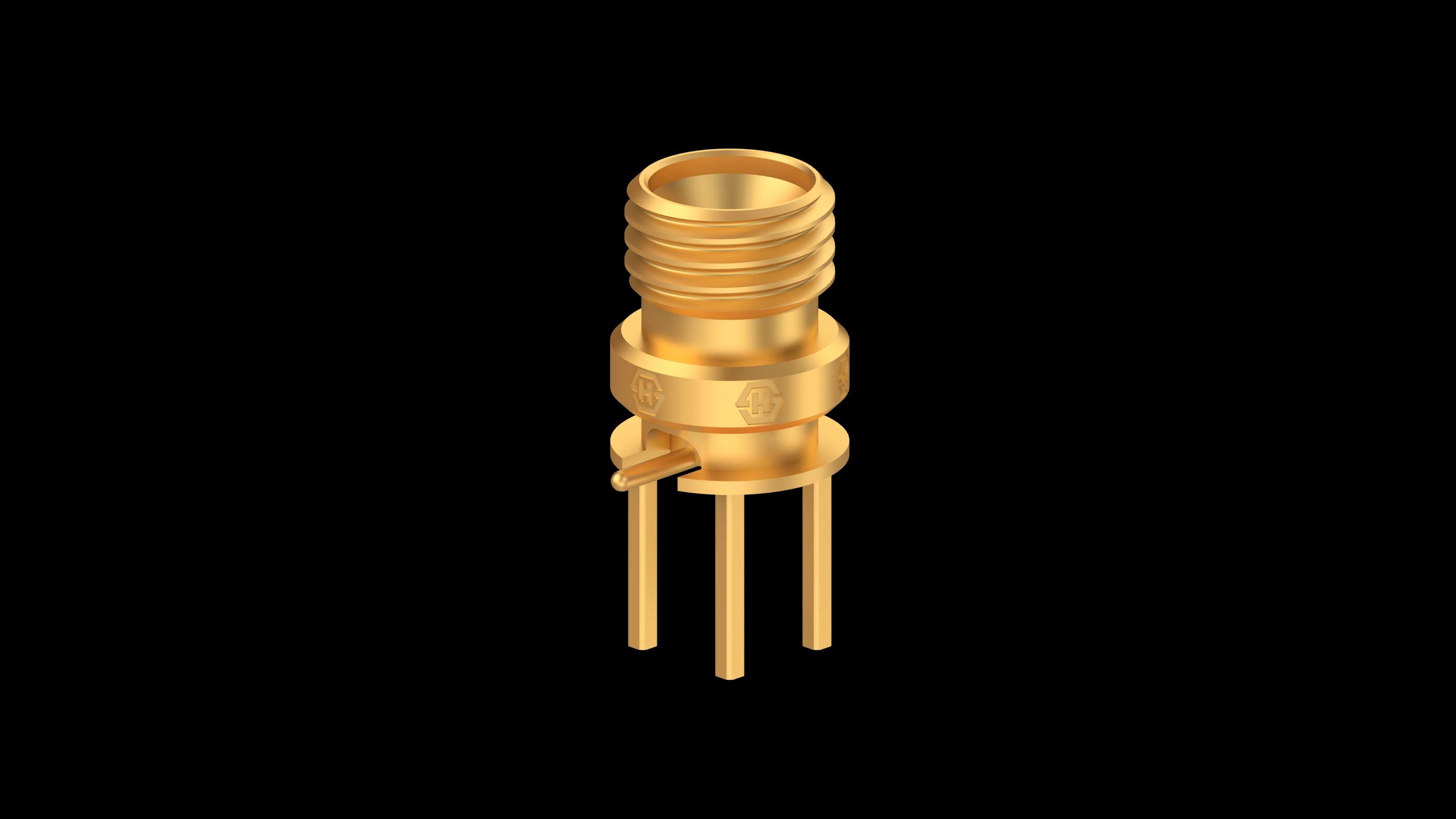

The snap-on connector family MMPX is the most ideal coaxial-to-PCB system solution for operating frequencies up to 67 GHz. The comprehensive product range consists of cable connectors and assemblies, PCB connectors and adaptors to open standards. MMPX connectors feature excellent electrical performance at smallest mechanical dimensions. The broadband characteristics, the small size and the outstanding performance permit new solutions for applications in numerous markets such as high speed digital testing and radio frequency testing, industrial, mobile communication, space and defense.

Features:

• True 67 GHz coaxial-to-PCB transition
• Broadband characteristics from DC to 67 GHz
• Excellent return loss
• Excellent shielding, low cross-talk
• Via-in-pad capable
• 5.08 mm pitch (0.2 inch)
• Mechanically robust design
• Extensive technical support
