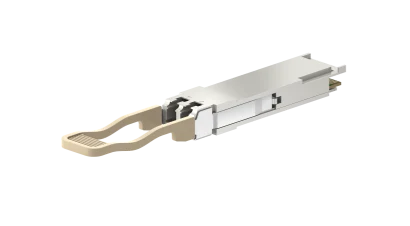

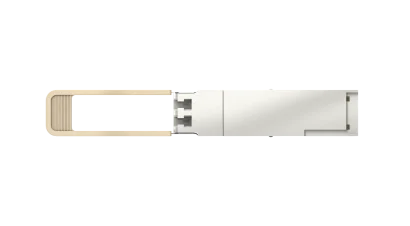

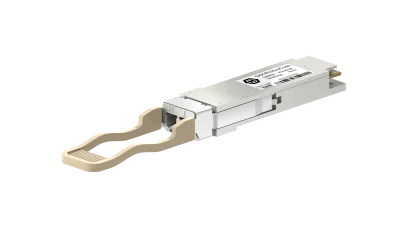

100 Gb/s QSFP28 Coherent Tunable DWDM ZR

Product number 85238404

Identifier CQS-935A22

Variation: 120km, C-band, LC/PC duplex, Singlemode, CMIS

Wavelength

1550nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP28.100G-DWDM-ZR

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

Key features

How to use it

Wavelength

1550nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP28.100G-DWDM-ZR

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

General data

Absolute Maximum Ratings

Transmitter Specifications

Receiver Specifications

Type	100 Gb/s QSFP28 Coherent Tunable DWDM ZR
Media Reach Type	80km, C-band 100GHz, Singlemode fiber
Protocol	100G Ethernet
Special features	Dual rate

Form factor	QSFP28
Protocol	100G Ethernet
Media type	Singlemode

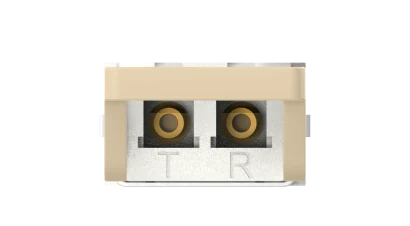

Connector	LC/PC duplex
Modulation Format	DQPSK
Built-in FEC	Staircase FEC
Management Interface	CMIS
CDR	Double
Operation temperature	0 °C ... 70 °C
Supply voltage typical	3.135 V ... 3.465 V
Power Consumption	< 5 W
Digital Diagnostic Management (DDM)	Yes
Laser hazard level	1

Max. Storage Temperature Range	-40 °C ... 85 °C
Max. relative humidity range	5 % ... 95 %

Laser Type	Coherent
Operating Channels	Tunable from H13 to H60 / C14 to C61
Grid	DWDM 50GHz C/H-band
Average launch power per lane	-8 dBm ... -4 dBm
Supported Data rate	103.125 Gbps ... 111.809 Gbps

Receiver Overload	> 1 dBm
Receiver Sensitivity	< -30 dBm
Minimum OSNR at Receiver	16.5 dBm / 0.1nm
Receiver Sensitivity at min. OSNR	-18 dBm
Bit Error Rate at Receiver	1E-12
Supported Data rate	103.125 Gbps ... 111.809 Gbps
Maximum Receiver Power (Damage Threshold)	> 3 dBm
