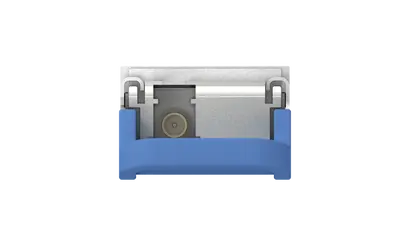

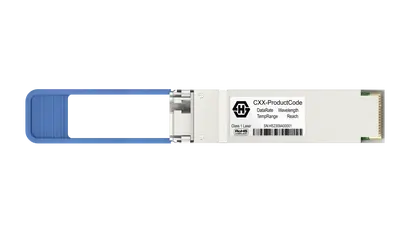

100G QSFP28 Bidi ER1 lite

Name: 100G QSFP28 Bidi ER1 lite
SKU: 85236282
Availability: InStock

Product number 85236282

Identifier CQB-903A15

Variation: 30km, 1304/1309nm, LC/PC simplex, Singlemode

Wavelength

~ Tbd (prior to order)

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP28 100G Bidi ER1lite

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

Key features

How to use it

Wavelength

~ Tbd (prior to order)

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP28 100G Bidi ER1lite

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

General data

Absolute Maximum Ratings

Transmitter Specifications

Laser Type	EML
Operating Channels	1304.58nm (1303.54 to 1305.63nm) 1309.14nm (1308.09 to 1310.19nm)
Grid	None
Average launch power per lane	0 dBm ... 5.6 dBm
Extinction Ratio	> 6 dB
Side Mode Suppression	> 30 dB
Supported Data rate	103.125 Gbps
Transmitter and dispersion eye closure for PAM4 (TDECQ)	< 3.9 dB
OMA - TDECQ	3.0 to 6.4 dBm (TDEQ < 1.4 dB) 1.6 dBm + TDEQ to 6.4 dBm

Receiver Specifications

Receiver Type	APD
Operating Channels	1304.58nm (1303.54 to 1305.63nm) 1309.14nm (1308.09 to 1310.19nm)
Receiver Overload	> -2.4 dBm
Receiver Sensitivity (OMA)	< -12.5 dBm
LOS De-Assert	< -15 dBm
Receiver LOS Assert	> -26 dBm
Receiver LOS Hysteresis	> 0.5 dB
Supported Data rate	103.125 Gbps
Average receive power per lane	-14.7 dBm ... -3.4 dBm
Maximum Receiver Power (Damage Threshold)	> -2.6 dBm

Form factor	QSFP28
Protocol	100G Ethernet
Media type	Singlemode
Connector	LC/PC simplex
Modulation Format	PAM4
Built-in FEC	KP4-FEC
CDR	Double
Operation temperature	0 °C ... 70 °C
Supply voltage typical	3.13 V ... 3.47 V
Supply Current	< 1300 mA
Digital Diagnostic Management (DDM)	Yes
Laser hazard level	1

Max. supply voltage range	-0.5 V ... 4 V
Max. Storage Temperature Range	-40 °C ... 85 °C
Max. relative humidity range	5 % ... 85 %
