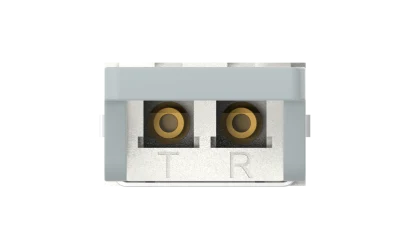

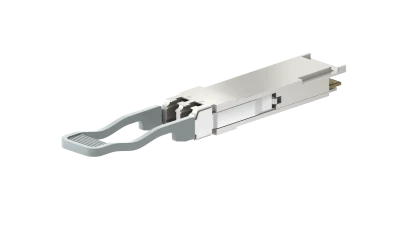

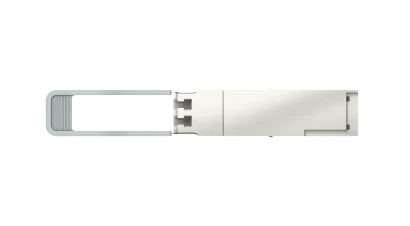

100G QSFP28 SWDM4

Name: 100G QSFP28 SWDM4
SKU: 85219222
Availability: InStock

Product number 85219222

Identifier CQM-914A03

Variation: 100m, 850nm, LC/PC duplex, Multimode

Wavelength

850nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP28-100G-SWDM4

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

Key features

How to use it

MSA compliant transceiver
Choose coding according to equipment vendor
Utilizes standard LC/PC duplex cable allowing re-use of existing cable infrastructures

Wavelength

850nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP28-100G-SWDM4

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

General data

Absolute Maximum Ratings

Transmitter Specifications

Receiver Specifications

Form factor	QSFP28
Protocol	100G Ethernet
Data rate standards	100GBASE-SWDM4
Media type	Multimode
Connector	LC/PC duplex
Modulation Format	NRZ
Built-in FEC	No
CDR	Double
Operation temperature	0 °C ... 70 °C
Supply voltage typical	3.13 V ... 3.47 V
Power Consumption	< 3.5 W
Digital Diagnostic Management (DDM)	Yes
Laser hazard level	1M

Max. supply voltage range	-0.5 V ... 3.6 V
Max. Storage Temperature Range	-40 °C ... 85 °C
Max. relative humidity range	5 % ... 85 %

Laser Type	VCSEL
Operating Channels	851nm (844 ... 858nm) 881nm (874 ... 888nm) 911nm (904 ... 918nm) 941nm (934 ... 948nm)
Grid	None
Outer Optical Modulation Amplitude (OMA)	-5.5 dBm ... 3 dBm
Supported Data rate	103.125 Gbps
Transmitter and dispersion eye closure for PAM4 (TDECQ)	< 4.8 dB
OMA - TDECQ	> -7.0 dBm (Lanes 1, 2) > -7.4 dBm (Lane 2) > -7.8 dBm (Lane 3)

Receiver Type	PIN
Operating Channels	851nm (844 ... 858nm) 881nm (874 ... 888nm) 911nm (904 ... 918nm) 941nm (934 ... 948nm)
Receiver Overload	> 3 dBm
Receiver Sensitivity (OMA)	< -8.8 dBm
Bit Error Rate at Receiver	1E-12
Maximum Optical Input Power per Lane (Overload)	3 dBm
Supported Data rate	103.125 Gbps
