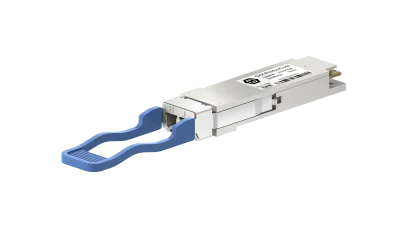

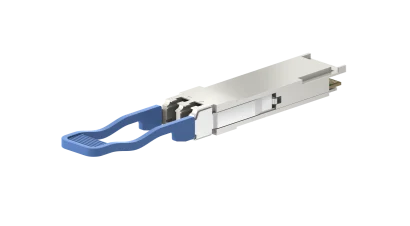

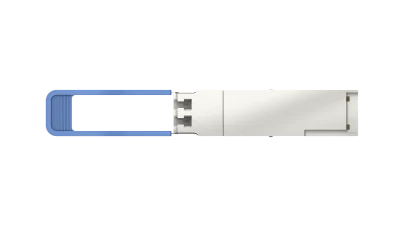

100G QSFP28 LR4

Name: 100G QSFP28 LR4
SKU: 85211507
Availability: InStock

Product number 85211507

Identifier CQS-900A07

Variation: 10km, 1310nm, LC/PC duplex, Singlemode

Wavelength

1310nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP28-LR4

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

Key features

How to use it

Wavelength

1310nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP28-LR4

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

General data

Absolute Maximum Ratings

Transmitter Specifications

Receiver Specifications

Receiver Type	PIN
Operating Channels	1295.56nm (1294.53 to 1296.59nm) 1300.05nm (1299.02 to 1301.09nm) 1304.58nm (1303.54 to 1305.63nm) 1309.14nm (1308.09 to 1310.19nm)
Receiver Overload	> 4.5 dBm
Receiver Sensitivity	< -10.6 dBm
Receiver Sensitivity (OMA)	< -8.6 dBm
Bit Error Rate at Receiver	1E-12
Maximum Optical Input Power per Lane (Overload)	4.5 dBm
LOS De-Assert	> -24 dBm
Receiver LOS Assert	< -12 dBm
Receiver LOS Hysteresis	> 0.5
Supported Data rate	103.125 Gbps

Form factor	QSFP28
Protocol	100G Ethernet, Infiniband
Data rate standards	100GBASE-LR4
Media type	Singlemode

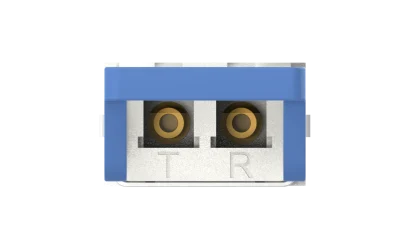

Connector	LC/PC duplex
Modulation Format	NRZ
Built-in FEC	No
CDR	Double
Operation temperature	0 °C ... 70 °C
Supply voltage typical	3.13 V ... 3.47 V
Supply Current	< 1200 mA
Power Consumption	< 4 W
Digital Diagnostic Management (DDM)	Yes
Laser hazard level	1

Max. supply voltage range	-0.3 V ... 3.6 V
Max. Storage Temperature Range	-40 °C ... 85 °C
Max. relative humidity range	5 % ... 95 %

Laser Type	DML
Operating Channels	1295.56nm (1294.53 to 1296.59nm) 1300.05nm (1299.02 to 1301.09nm) 1304.58nm (1303.54 to 1305.63nm) 1309.14nm (1308.09 to 1310.19nm)
Grid	None
Average launch power per lane	-4.3 dBm ... 4.5 dBm
Total optical output power	< 10.5 dBm
Extinction Ratio	> 4 dB
Side Mode Suppression	> 30 dB
Supported Data rate	103.125 Gbps
