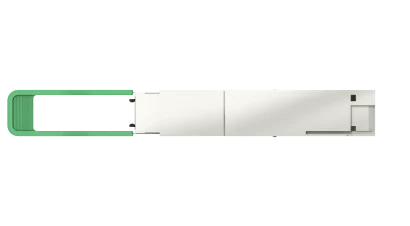

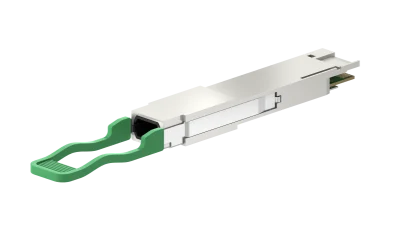

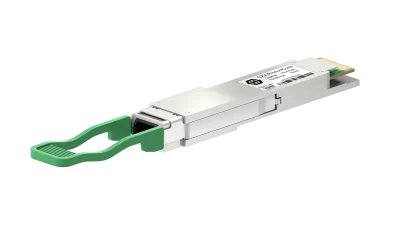

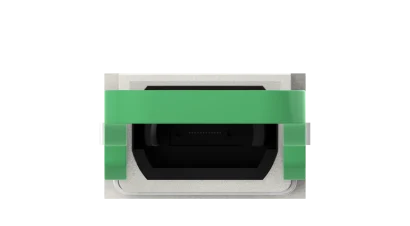

400G QSFP56-DD PAM4 DR4+
Product number 85247490
Identifier CQS-122A04
Variation 2km, 1310nm, MPO-12, Singlemode
Wavelength
1310nm
Compatibility: Vendor
- Uncoded
Compatibility: Details
QSFP-DD-400G-DR4+
Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.
General Information
- Multi-protocol support
- PAM4 Modulation
- Data rate 425 Gbps
- Reach up to 2km
- Wavelength 1310nm
- MPO/MTP-8/12 (APC) connector
- Singlemode fiber
- Temp. range 0 ... 70°C
- Link budget at least 4 dB
- Power consumption < 9.5 W
Key features
- MSA compliant transceiver
- Choose coding according to equipment vendor
