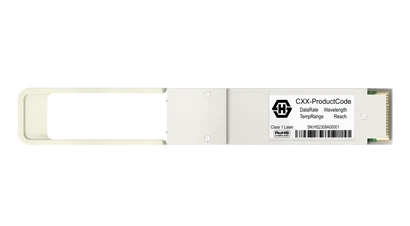

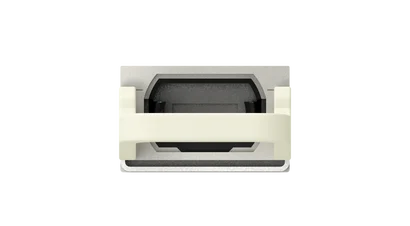

200G QSFP56 SR4

Name: 200G QSFP56 SR4
SKU: 85224055
Availability: InStock

Product number 85224055

Identifier CQM-950A04

Variation: 100m, 850nm, MPO-12, Multimode

Wavelength

850nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP56-SR4

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

Key features

How to use it

Wavelength

850nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP56-SR4

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

General data

Absolute Maximum Ratings

Transmitter Specifications

Receiver Specifications

Form factor	QSFP56
Protocol	200G Ethernet
Data rate standards	200GBASE-SR4
Media type	Multimode
Connector	MTP/MPO-8/12
Modulation Format	PAM4
Built-in FEC	No
CDR	Double
Operation temperature	0 °C ... 70 °C
Supply voltage typical	3.13 V ... 3.47 V
Supply Current	< 1515 mA
Power Consumption	< 5 W
Digital Diagnostic Management (DDM)	Yes
Laser hazard level	1M

Max. supply voltage range	-0.3 V ... 4 V
Max. Storage Temperature Range	-40 °C ... 85 °C
Max. relative humidity range	5 % ... 85 %

Laser Type	VCSEL
Operating Wavelength Range	840 nm ... 860nm
Grid	None
Average launch power per lane	-6.5 dBm ... 4 dBm
Outer Optical Modulation Amplitude (OMA)	-4.5 dBm ... 3 dBm
Extinction Ratio	> 3 dB
Side Mode Suppression	> 30 dB
Supported Data rate	212.5 Gbps
OMA - TDECQ	> -5.9 dBm

Receiver Type	PIN
Operating Wavelength Range	840 nm ... 860nm
Receiver Overload	> 4 dBm
Receiver Sensitivity	< -8.4 dBm
Receiver Sensitivity (OMA)	< -7 dBm
Bit Error Rate at Receiver	2.4E-4
Supported Data rate	212.5 Gbps
Maximum Receiver Power (Damage Threshold)	> 5 dBm
