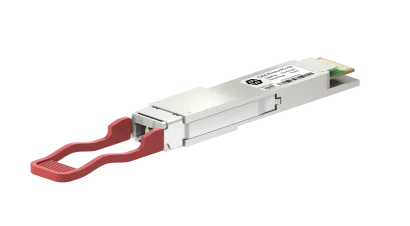

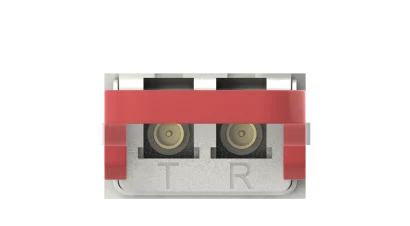

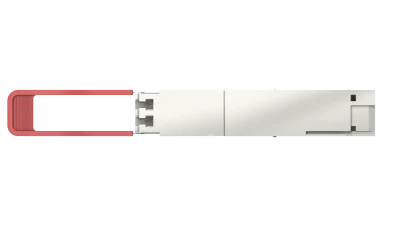

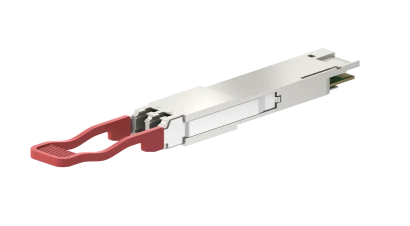

400G QSFP56-DD PAM4 ER8

Name: 400G QSFP56-DD PAM4 ER8
SKU: 85223348
Availability: InStock

Product number 85223348

Identifier CQS-106A18

Variation: 40km, 1310nm, LC/PC duplex, Singlemode

Wavelength

1310nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP-DD-400G-ER8

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

Key features

How to use it

Wavelength

1310nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP-DD-400G-ER8

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

General data

Absolute Maximum Ratings

Transmitter Specifications

Laser Type	EML
Operating Channels	1273.54nm (1272.51 to 1274.57nm) 1277.89nm (1276.86 to 1278.92nm) 1282.26nm (1281.23 to 1283.29nm) 1286.66nm (1285.63 to 1287.69nm) 1295.56nm (1294.53 to 1296.59nm) 1300.05nm (1299.02 to 1301.09nm) 1304.58nm (1303.54 to 1305.63nm) 1309.14nm (1308.09 to 1310.19nm)
Grid	None
Average launch power per lane	-0.6 dBm ... 5.6 dBm
Extinction Ratio	> 6 dB
Side Mode Suppression	> 30 dB
Supported Data rate	425 Gbps

Receiver Specifications

Receiver Type	APD
Operating Channels	1273.54nm (1272.51 to 1274.57nm) 1277.89nm (1276.86 to 1278.92nm) 1282.26nm (1281.23 to 1283.29nm) 1286.66nm (1285.63 to 1287.69nm) 1295.56nm (1294.53 to 1296.59nm) 1300.05nm (1299.02 to 1301.09nm) 1304.58nm (1303.54 to 1305.63nm) 1309.14nm (1308.09 to 1310.19nm)
Receiver Overload	> -4.4 dBm
Receiver Sensitivity	< -18.6 dBm
Receiver LOS Hysteresis	> 0.5 dB
Supported Data rate	425 Gbps

Form factor	QSFP56-DD
Protocol	400G Ethernet
Data rate standards	400GBASE-ER8
Media type	Singlemode
Connector	LC/PC duplex
Modulation Format	PAM4
Built-in FEC	No
CDR	Double
Operation temperature	0 °C ... 70 °C
Supply voltage typical	3.13 V ... 3.47 V
Power Consumption	< 15.4 W
Digital Diagnostic Management (DDM)	Yes
Laser hazard level	1M

Max. supply voltage range	-0.5 V ... 3.6 V
Max. Storage Temperature Range	-40 °C ... 85 °C
Max. relative humidity range	5 % ... 85 %
