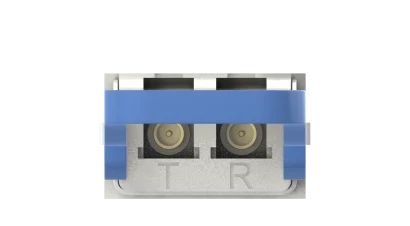

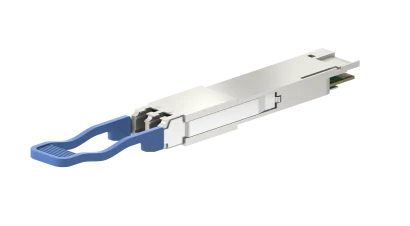

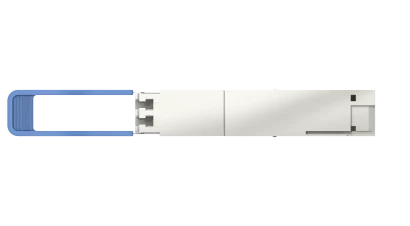

400G QSFP56-DD PAM4 LR8

Name: 400G QSFP56-DD PAM4 LR8
SKU: 85223346
Availability: InStock

Product number 85223346

Identifier CQS-104A06

Variation: 10km, 1310nm, LC/PC duplex, Singlemode

Wavelength

1310nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP-DD-400G- LR8

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

Key features

How to use it

Wavelength

1310nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP-DD-400G- LR8

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

General data

Absolute Maximum Ratings

Transmitter Specifications

Laser Type	EML
Operating Channels	1273.54nm (1272.51 to 1274.57nm) 1277.89nm (1276.86 to 1278.92nm) 1282.26nm (1281.23 to 1283.29nm) 1286.66nm (1285.63 to 1287.69nm) 1295.56nm (1294.53 to 1296.59nm) 1300.05nm (1299.02 to 1301.09nm) 1304.58nm (1303.54 to 1305.63nm) 1309.14nm (1308.09 to 1310.19nm)
Grid	None
Average launch power per lane	-2.8 dBm ... 5.7 dBm
Total optical output power	< 14.7 dBm
Extinction Ratio	> 3.5 dB
Side Mode Suppression	> 30 dB
Supported Data rate	425 Gbps

Receiver Specifications

Receiver Type	PIN
Operating Channels	1273.54nm (1272.51 to 1274.57nm) 1277.89nm (1276.86 to 1278.92nm) 1282.26nm (1281.23 to 1283.29nm) 1286.66nm (1285.63 to 1287.69nm) 1295.56nm (1294.53 to 1296.59nm) 1300.05nm (1299.02 to 1301.09nm) 1304.58nm (1303.54 to 1305.63nm) 1309.14nm (1308.09 to 1310.19nm)
Receiver Overload	> 5.3 dBm
Receiver Sensitivity	< -9.1 dBm
Receiver LOS Hysteresis	> 0.5 dB
Supported Data rate	425 Gbps

Form factor	QSFP56-DD
Protocol	400G Ethernet
Data rate standards	400GBASE-LR8
Media type	Singlemode
Connector	LC/PC duplex
Modulation Format	PAM4
Built-in FEC	No
CDR	Double
Operation temperature	0 °C ... 70 °C
Supply voltage typical	3.13 V ... 3.47 V
Supply Current	< 4500 mA
Power Consumption	< 14.5 W
Digital Diagnostic Management (DDM)	Yes
Laser hazard level	1M

Max. supply voltage range	-0.5 V ... 3.6 V
Max. Storage Temperature Range	-40 °C ... 85 °C
Max. relative humidity range	5 % ... 85 %
