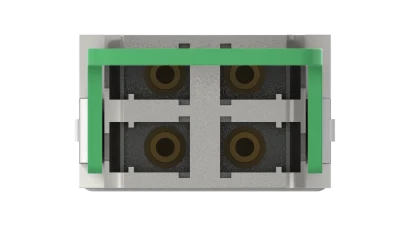

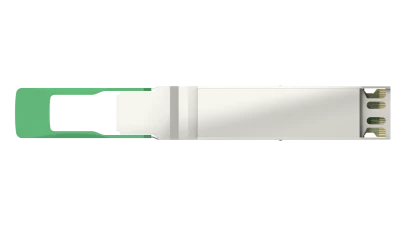

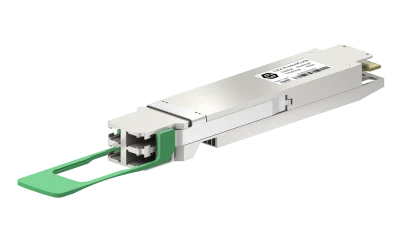

800G OSFP112 2x400G PAM4 FR4

Product number 85223345

Identifier COS-200A04

Variation: 2km, 1310nm, 2x LC/PC duplex, Singlemode, Flat top

Wavelength

1310nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP-DD-2xFR4

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

Key features

How to use it

Wavelength

1310nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP-DD-2xFR4

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

General data

Absolute Maximum Ratings

Transmitter Specifications

Laser Type	EML
Operating Channels	1271.00nm (1264.5 to 1277.5nm) 1291.00nm (1284.5 to 1297.5nm) 1311.00nm (1304.5 to 1317.5nm) 1331.00nm (1324.5 to 1337.5nm)
Grid	None
Average launch power per lane	-3.2 dBm ... 4.4 dBm
Outer Optical Modulation Amplitude (OMA)	-0.2 dBm ... 3.4 dBm
Total optical output power	< 13.4 dBm
Extinction Ratio	> 3.5 dB
Side Mode Suppression	> 30 dB
Supported Data rate	850 Gbps
Transmitter and dispersion eye closure for PAM4 (TDECQ)	< 3.4 dB

Receiver Specifications

Form factor	OSFP112 (Flat top)
Protocol	2x 400G Ethernet
Media type	Singlemode
Connector	Dual LC/PC duplex
Modulation Format	PAM4
Built-in FEC	No
CDR	Double
Operation temperature	0 °C ... 70 °C
Supply voltage typical	3.13 V ... 3.47 V
Supply Current	< 4242 mA
Power Consumption	< 14 W
Digital Diagnostic Management (DDM)	Yes
Laser hazard level	1M

Max. supply voltage range	-0.5 V ... 3.6 V
Max. Storage Temperature Range	-40 °C ... 85 °C
Max. relative humidity range	5 % ... 95 %

Receiver Type	PIN
Operating Channels	1271.00nm (1264.5 to 1277.5nm) 1291.00nm (1284.5 to 1297.5nm) 1311.00nm (1304.5 to 1317.5nm) 1331.00nm (1324.5 to 1337.5nm)
Receiver Overload	> 4.4 dBm
Receiver Sensitivity (OMA)	< -4.6 dBm
Bit Error Rate at Receiver	2.4E-4
Receiver LOS Hysteresis	> 0.5 dB
Supported Data rate	850 Gbps
Maximum Receiver Power (Damage Threshold)	> 5.4 dBm
