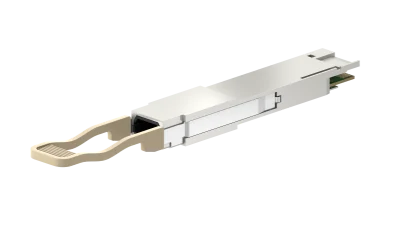

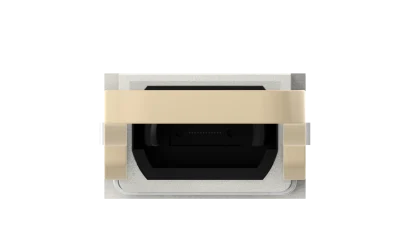

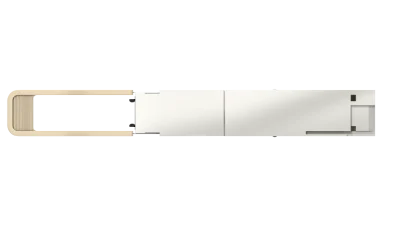

400G QSFP56-DD PAM4 SR8

Name: 400G QSFP56-DD PAM4 SR8
SKU: 85215146
Availability: InStock

Product number 85215146

Identifier CQM-100A03

Variation: 100m, 850nm, MPO-16, Multimode

Wavelength

1310nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP-DD-400G-SR8

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

Key features

How to use it

Wavelength

1310nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP-DD-400G-SR8

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

General data

Absolute Maximum Ratings

Transmitter Specifications

Receiver Specifications

Form factor	QSFP56
Protocol	400G Ethernet
Data rate standards	400GBASE-SR8
Media type	Multimode
Connector	MTP/MPO-16
Modulation Format	PAM4
Built-in FEC	No
CDR	Double
Operation temperature	0 °C ... 70 °C
Supply voltage typical	3.13 V ... 3.47 V
Supply Current	< 2700 mA
Power Consumption	< 10 W
Digital Diagnostic Management (DDM)	Yes
Laser hazard level	1M

Max. supply voltage range	-0.3 V ... 4 V
Max. Storage Temperature Range	-40 °C ... 85 °C
Max. relative humidity range	5 % ... 95 %

Laser Type	VCSEL
Operating Wavelength Range	840 nm ... 860nm
Grid	None
Average launch power per lane	-6 dBm ... 4 dBm
Outer Optical Modulation Amplitude (OMA)	-4 dBm ... 3 dBm
Extinction Ratio	> 3 dB
Side Mode Suppression	> 30 dB
Supported Data rate	425 Gbps
OMA - TDECQ	-5.9dBm

Receiver Type	PIN
Operating Wavelength Range	840 nm ... 860nm
Receiver Overload	> 4 dBm
Receiver Sensitivity (OMA)	< -7 dBm
Maximum Optical Input Power per Lane (Overload)	5 dBm
Supported Data rate	425 Gbps
Average receive power per lane	-7.9 dBm ... 4 dBm
