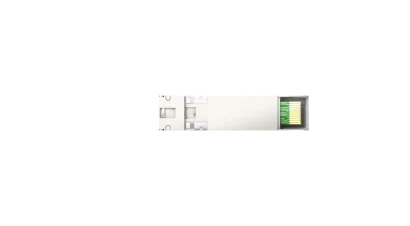

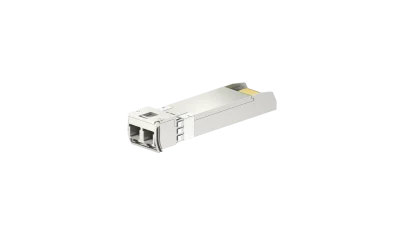

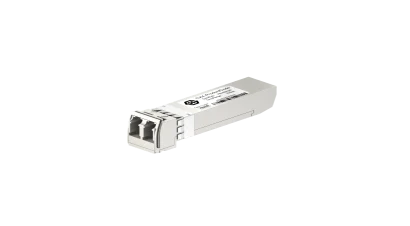

10G SFP+ SR

Name: 10G SFP+ SR
SKU: 85218867
Availability: InStock

Product number 85218867

Identifier CSM-901A04

Variation: 550m, 850nm, LC/PC duplex, Multimode, Industrial temp.

Wavelength

850nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

SFP+-10G-SR

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

Key features

How to use it

Wavelength

850nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

SFP+-10G-SR

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

General data

Form factor	SFP+
Protocol	1/10G Ethernet, 1/2/4/8/10G FC, STM-64/OC-48, CPRI Option 2...8, OBSAI
Data rate standards	10GBASE-SR/SW FC 800-M5/M6/M5E-LC-I CPRI Option 2 to 8
Media type	Multimode

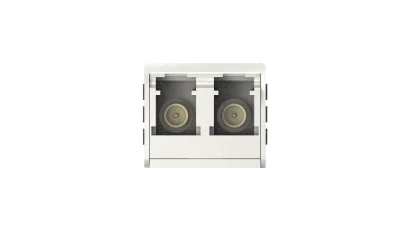

Connector	LC/PC duplex
Modulation Format	NRZ
Built-in FEC	No
CDR	none
Operation temperature	-40 °C ... 85 °C
Supply voltage typical	3.13 V ... 3.47 V
Supply Current	< 250 mA
Power Consumption	< 1 W
Digital Diagnostic Management (DDM)	Yes
Laser hazard level	1

Absolute Maximum Ratings

Transmitter Specifications

Receiver Specifications

Max. supply voltage range	-0.5 V ... 3.6 V
Max. Storage Temperature Range	-40 °C ... 85 °C
Max. relative humidity range	5 % ... 95 %

Laser Type	VCSEL
Operating Wavelength Range	840 nm ... 860nm
Grid	None
Average launch power per lane	-6 dBm ... -1 dBm
Extinction Ratio	> 3 dB
Side Mode Suppression	> 30 dB
Supported Data rate	1.0625 Gbps ... 11.3 Gbps

Receiver Type	PIN
Operating Wavelength Range	840 nm ... 860nm
Receiver Overload	> 0.5 dBm
Receiver Sensitivity	< -10 dBm
Bit Error Rate at Receiver	1E-12
Maximum Optical Input Power per Lane (Overload)	0.5 dBm
LOS De-Assert	< -14 dBm
Receiver LOS Assert	> -30 dBm
Receiver LOS Hysteresis	> 0.5 dB
Supported Data rate	1.0625 Gbps ... 11.3 Gbps

Type	10G SFP+ SR
Media Reach Type	550m, 850nm, OM4 multimode fiber
Protocol	1/10G Ethernet, 1/2/4/8/10G FC, STM-64/OC-48, CPRI Option 2...8, OBSAI
Special features	Industrial temp.
