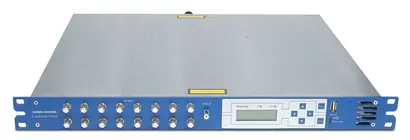

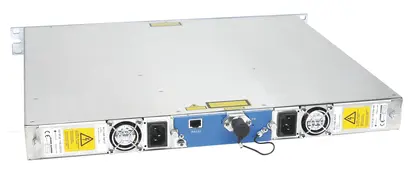

Power over fiber, 1RU, L1, L2, L5, 16 RF OUT, 1 FO OUT, Monitoring, DC

Name: Power over fiber, 1RU, L1, L2, L5, 16 RF OUT, 1 FO OUT, Monitoring, DC
SKU: 85213405
Availability: InStock

Product number 85213405

Identifier P-GNSSPoF16-RxE-03

Variation: Missing product short name

Key features

General data

Electrical data

Mechanical data

Optical data

Environmental data

Output of RF connection

Input of FO connection

Output of FO connection

Network

Suitable Products	O-GNSSPoF0-1-L15, 85227355 O-GNSSPoF0-1-L12, 85244046 Power Supply DC, 85213407
Product family	GNSS Power

GNSS band	L1 L2 L5
VSWR	< 1.8
Equivalent active antenna gain	35 dB
Power consumption	< 36 W
Supply voltage range	36 V DC ... 60 V DC

Time delay	32 ns
Laser hazard level	4 / 1M
Optical input power typical	1 mW
Optical power - signal typical	1 mW
Optical power - remote powering max	600 mW
Operating wavelength signal	1310 nm
Operating wavelength power	1480 nm

Storage temperature	-40 °C ... 75 °C
Operation case temperature	-5 °C ... 55 °C

Product family	RJ 45 SFP USB
Amount of Connectors	4 pcs 2 pcs 2 pcs
Type 1	1x RS 232 2x Ethernet 10/100/1000 Mbps 1x USB Type A
Type 2	2x Ethernet 10/100/1000 Mbps 1x USB MICRO B
Type 3	1x RS 485
