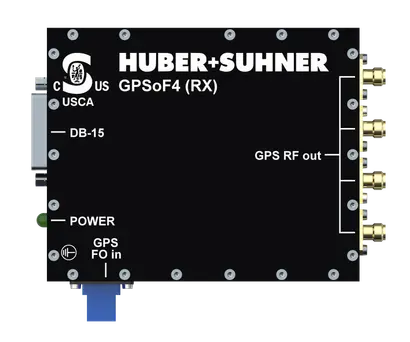

Expansion module, Receiver, L1, L2, DIN Rail, 4 RF OUT, 1 FO IN

Name: Expansion module, Receiver, L1, L2, DIN Rail, 4 RF OUT, 1 FO IN
SKU: 85140587

Product number 85140587

Identifier GPSoF4 - 1.5GHz (RX) [LC/PC]

Variation: -

Key features

General data

Electrical data

GNSS band	L1 L2
Link gain range	4 dB ... 10 dB
Link gain typical	7 dB
Frequency response flatness	3 dB
Link noise figure typical	15 dB
VSWR	< 1.8
Link spurious free dynamic range SFDR3 typical	80 dB / Hz ⅔
Link input at 1dB compression point min.	-15 dBm
RF input power damage limit	15 dBm
Power in	12 V DC

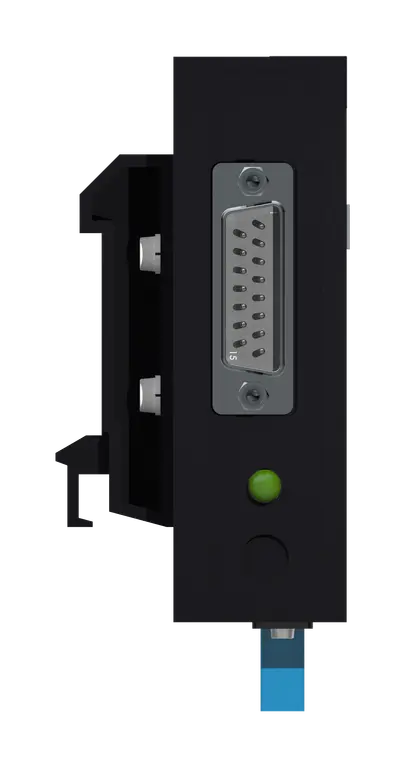

Power connector	D-Sub 15pol
Supply voltage range	12 V DC ... 15 V DC
Supply voltage typical	12 V DC

Mechanical data

Optical data

Environmental data

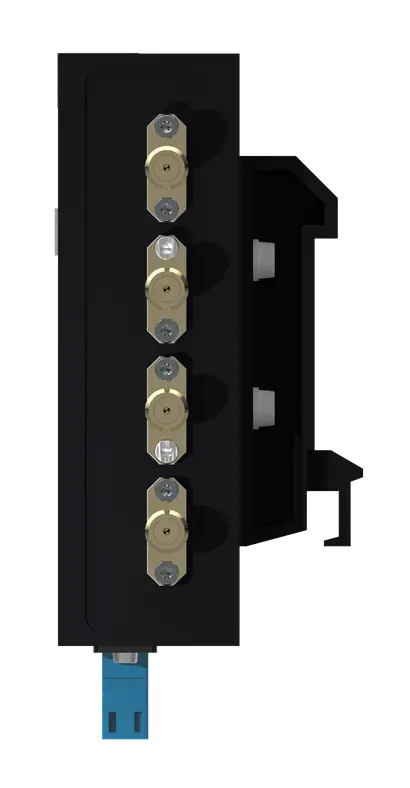

Output of RF connection

Input of FO connection

Time delay	55 ns
Optical power - signal min	6 mW
Optical power - signal max	10 mW
Optical power - signal typical	8 mW
Side mode suppression ratio min	30 dB
Side mode suppression ratio typical	40 dB

Storage temperature	-40 °C ... 85 °C
Operation case temperature	-5 °C ... 55 °C
