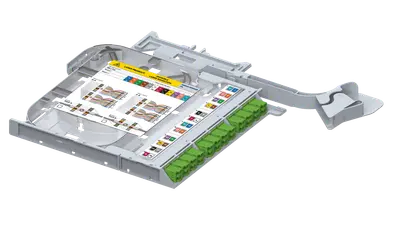

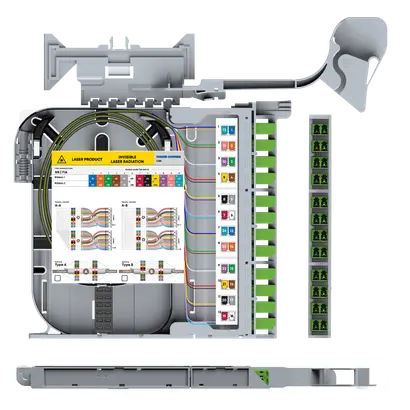

LISA ribbon splice cassette LEFT, 24x fiber, 12xLCD APC, G.657.A2, NS | TIA, HS incl

Name: LISA ribbon splice cassette LEFT, 24x fiber, 12xLCD APC, G.657.A2, NS | TIA, HS incl
SKU: 85241944
Availability: InStock

Product number 85241944

Identifier LC-L-SK-12-LCAD-00-0000-A2-NS-R1S0

Variation: -

Key features

Cassette accessed from the front with side facing adapters with pull-out and hinge down function for maintenance
Pull-out service position for immediate access to adapters
Patch cords supported and guided into management system
The cassette tray is optimized for mass-fusion splicing

How to use it

General data

Optical data

Mechanical data

Technical data

Product family	LISA
Module type	Ribbon Splicing Module
Fiber quantity	24 pcs
Polarity	NS+TIA
Colour coding	TIA
Drawer tilt	90 °
Pigtails	OptiRibbon
Module material	Plastic
Module colour	Window grey (RAL 7040)
Number of adapter front	12 pcs
Adapter family front	LC
Polishing adapter front	SM APC
Housing colour adapter front	Green
Fiber type	Singlemode
Fiber	E9/125A2
Insertion loss max.	≤ 0.15 dB
Return loss	≥ 65 dB
Flammability rating	UL 94 V-2
Free of halogene	Yes
Operation temperature	-40 °C ... 70 °C
