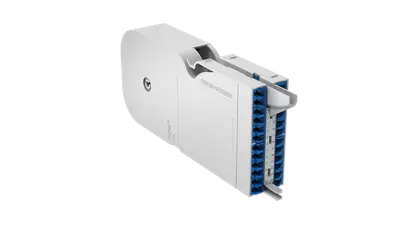

SYLFA HD Splice Module, 12xSM, LC UPC

Name: SYLFA HD Splice Module, 12xSM, LC UPC
SKU: 85229154
Availability: InStock

Product number 85229154

Identifier SSS-12-LCUD-00-0000-SM-02-S0S0

Variation: -

Key features

How to use it

SYLFA HD modules are interchangeable connectivity blocks that can be inserted into all SYLFA HD chassis

General data

Optical data

Mechanical data

Technical data

Product family	SYLFA HD
Module type	Splicing Module
Fiber quantity	24 pcs
Number of ports	1x12
Pigtails	Loose fibers
Dimensions (LxWxH)	200.4mm x 31.6mm x 81.6mm
Weight	0.311 kg
Module material	Plastic
Module colour	Telegrey 4 (RAL 7047)
Number of adapter front	12 pcs
Adapter family front	LC
Polishing adapter front	SM UPC
Housing colour adapter front	Blue
Fiber type	Singlemode
Insertion loss max.	≤ 0.3 dB
Return loss	≥ 60 dB
