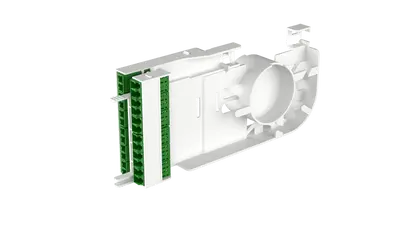

SYLFA HD Patch Modul, 12x LC duplex adapter

Name: SYLFA HD Patch Modul, 12x LC duplex adapter
SKU: 85125722
Availability: InStock

Product number 85125722

Identifier SPS-12-LCAD-00-0000-00-00-0000

Variation: -

How to use it

SYLFA HD modules are interchangeable connectivity blocks that can be inserted into all SYLFA HD chassis

General data

Optical data

Mechanical data

Technical data

Insertion loss max.	≤ 0.5 dB
Return loss	≥ 60 dB

Dimensions (LxWxH)	192.3mm x 31.6mm x 81.6mm
Weight	0.153 kg
Module material	Plastic
Module colour	Telegrey 4 (RAL 7047)
Number of adapter front	12 pcs
Adapter family front	LC
Polishing adapter front	SM APC
Housing colour adapter front	Green

Product family	SYLFA HD
Module type	Patching Module
Fiber quantity	24
Dimensions (LxWxH)	192.3mm x 31.6mm x 81.6mm
Weight	0.153 kg
Module material	Plastic
Module colour	Telegrey 4 (RAL 7047)
Number of adapter front	12 pcs
Adapter family front	LC
Polishing adapter front	SM APC
Housing colour adapter front	Green
Insertion loss max.	≤ 0.5 dB
Return loss	≥ 60 dB
