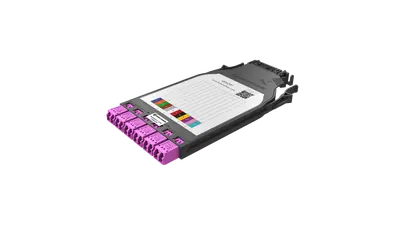

IANOS single splice module, 6xOM4, LCD PC, TIA

Name: IANOS single splice module, 6xOM4, LCD PC, TIA
SKU: 85115850

Product number 85115850

Identifier ISS-06-LCMD-00-0000-O4-04-H1L0

Variation: -

Key features

Supplied with heat shrink splice protectors
6 x LC duplex splicing (12 fibers)
Fast splicing and reduced coiling time
Lid with fiber identification
Quick access to fiber
Quick fix cable fixation for incoming cables
Compact and robust plastic construction
Bend radius control throughout (min. 30mm)
Integrated fiber splicing cassette with integral heat shrink or sandwich splice comb
Available in Single mode OS2 and Multimode OM3, OM4 performance

How to use it

IANOS modules are interchangeable connectivity blocks that can be inserted into all IANOS chassis

General data

Optical data

Mechanical data

Technical data

Product family	IANOS
Module type	Splicing Module
Fiber quantity	12
Colour coding	TIA
Pigtails	Loose fibers
Dimensions (LxWxH)	1901mm x 967mm x 119mm
Mounting type	Rear mounting
Weight	0.28 kg
Module material	Plastic
Module colour	Jet Black (RAL 9005)
Number of adapter front	6 pcs
Adapter family front	LC
Polishing adapter front	PC
Housing colour adapter front	Heather violet
Fiber type	Multimode OM4
Insertion loss max.	≤ 0.15 dB
Return loss	≥ 35 dB
