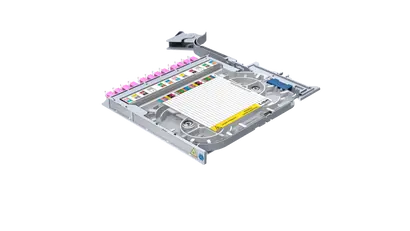

LISA splice cassette RIGHT, 24xOM4, LC PC, TIA

Name: LISA splice cassette RIGHT, 24xOM4, LC PC, TIA
SKU: 85111140
Availability: InStock

Product number 85111140

Identifier LC-R-SH-88-12-24-54-H1-04O-L0

Variation: -

Key features

Cassette accessed from the front with side facing adapters with pull-out and hinge down function for maintenance

How to use it

LISA cassettes are side-facing connectivity “blocks” that are inserted into LISA chassis within high-density 300 mm racks

General data

Optical data

Mechanical data

Technical data

Product family	LISA
Module type	Splicing Module
Fiber quantity	24
Colour coding	TIA
Pigtails	Loose fibers
Dimensions (LxWxH)	293mm x 2625mm x 185mm
Weight	0.609 kg
Module material	Plastic
Module colour	Window grey (RAL 7040)
Number of adapter front	12 pcs
Adapter family front	LC
Polishing adapter front	PC
Housing colour adapter front	Heather violet
Fiber type	Multimode
Insertion loss max.	≤ 0.35 dB
Return loss	≥ 30 dB
Flammability rating	UL 94 V-0
Operation temperature	-40 °C ... 70 °C

Environmental data
