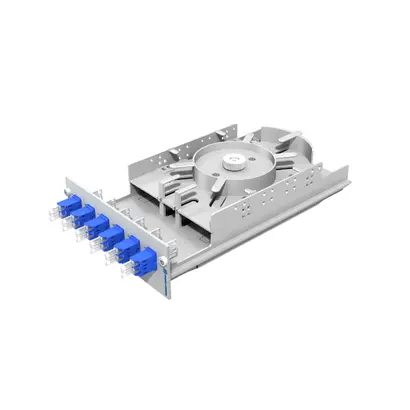

MCM module, 6xSM, LCD UPC, duplex adapter, ISO
Product number 85002473
Identifier MCM-88-06-12-09-H5-3-OS0
Variation: -
General Information
- Easy installation and handling from the front side
- Top mounted guiding rail for simple insertion and removal
- Open fiber guidance throughout the whole module
- Separate storage room for loose tubes and pigtails
- Integrated loose tube storage with generous reserve of up to 1.5 m
- Bend radius limitation of 35 mm for fibers and 45 mm for loose tubes
- Front facing orientation of adapters for fast access to connectors and patch cords
- Vertically arranged adapters accommodating 12 fibers per module
- Port identification on the front
- Holder for heat shrink splice protectors Ø2.4 mm
Key features
- MCM modules are interchangeable connectivity blocks that can be used in SYLFA Classic chassis
