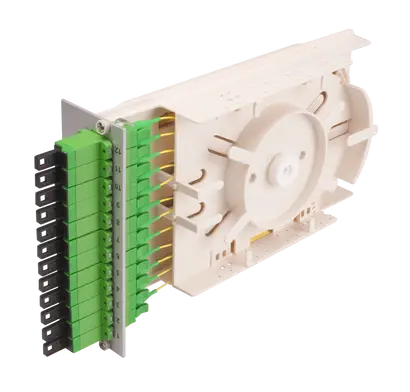

MCM module, 12xSM, E-2000® APC, simplex adapter
Product number 84142474
Identifier MCM-93-12-12-09-S1-0-OB0
Variation: -
General Information
- Easy installation and handling from the front side
- Top mounted guiding rail for simple insertion and removal
- Open fiber guidance throughout the whole module
- Separate storage room for loose tubes and pigtails
- Integrated loose tube storage with generous reserve of up to 1.5 m
- Bend radius limitation of 35 mm for fibers and 45 mm for loose tubes
- Front facing orientation of adapters for fast access to connectors and patch cords
- Vertically arranged adapters accommodating 12 fibers per module
- Port identification on the front
- Splice protectors for 12x Sandwich splicing
Key features
- MCM modules are interchangeable connectivity blocks that can be used in SYLFA Classic chassis
