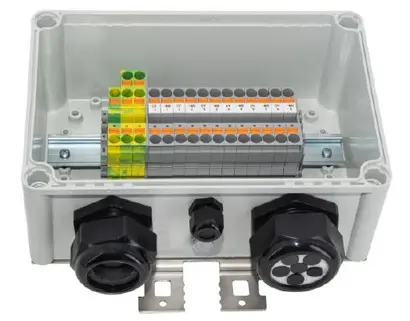

PTTA Box for 6 RRH, power distribution

Name: PTTA Box for 6 RRH, power distribution
SKU: 85145915
Availability: InStock

Product number 85145915

Identifier PTTA-16G-21-36-6x10-14-000-P16

Variation: -

Key features

How to use it

Box Data

Product family	PTTA
Number of remote radio heads (RRH)	6 pcs
Dimensions (LxWxH)	188mm x 278mm x 130mm
Weight	2.2 kg
Housing material	Glass-filled polycarbonate
Housing colour	Grey (RAL 7035)
Impact resistance	IK08
Operating voltage overall	-74V DC
Terminal type	Push-in
Max. cross section terminal input	16 mm²
Max. cross section terminal output	16 mm²
Ingress protection (IP Rating)	IP67
UV resistance	UL 508
Flammability rating	UL 746C5
Free of halogene	Yes
Protective vent typical airflow	1500 ml/min
Installation temperature	-10 °C ... 40 °C
Operation temperature	-40 °C ... 75 °C
Power cable capability	Entry: 1x Cable gland M50 Ø 21.0 to 36.0 mm (for 12-core cable) Exit: 1x Cable gland M63 Ø 10.2 - 13.5 mm (for 2-core jumper) Grounding: 1x Cable gland M20 Ø 5.0 to 13.0 mm
Fiber optic cable capability	Input: 1x Cable gland M50 Ø 21.0 to 36.0mm (for 12-core cable) Output: 1x Cable gland M63 Ø 10.2 to 13.5mm (for 2-core jumper) Output: 1x Cable gland M20 Ø 6.0 to 12.0mm for earthing

Product code	PTTA-16G-21-36-6x10-14-000-P16
Product family	PTTA
Number of remote radio heads (RRH)	6
