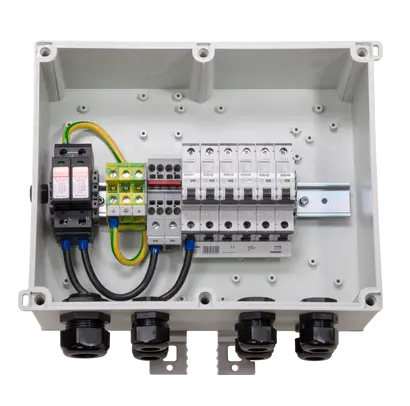

PTTA Box for 6 RRH, power distribution with CB and OVP

Name: PTTA Box for 6 RRH, power distribution with CB and OVP
SKU: 85015659
Availability: InStock

Product number 85015659

Identifier PTTA-16G-18-25-09-16-201-L

Variation: -

Key features

How to use it

Box Data

Product family	PTTA
Number of remote radio heads (RRH)	6 pcs
Dimensions (LxWxH)	320mm x 250mm x 138mm
Weight	3.7 kg
Housing material	Glass-filled polycarbonate
Housing colour	Grey (RAL 7035)
Impact resistance	IK07
Operating voltage overall	-48V DC
Terminal type	Power entry: screwed / Power exit: push-in
Max. cross section terminal input	16 mm²
Max. cross section terminal output	16 mm²
Ingress protection (IP Rating)	IP67
UV resistance	Yes
Flammability rating	UL 94 V-0
Free of halogene	Yes
Installation temperature	-10 °C ... 50 °C
Operation temperature	-40 °C ... 75 °C
Power cable capability	Entry: 1x Cable gland M32 Ø 13.0 to 25.0 mm (for 2 or 12-core cable) Exit: 6x Cable gland M25 Ø 9.0 to 16.0 mm (for 2-core jumper) Grounding: 1x Cable gland M20 Ø 5.0 to 13.0 mm
Fiber optic cable capability	Input: 1x Cable gland M32 for 2- or 12-core cable (Ø 13.0 to 25mm) Output: 1x cable gland M20 for earthing cable (Ø 5 to 13mm) Output: 3x Cable gland M25 for 2-core jumper (Ø 9.0 to 16mm )

Circuit Breaker Data

Circuit Breaker type	Miniature circuit breaker C 20A, type 5SY4120-7 (Siemens)
Amount of circuit breaker	6 pcs
Amount of poles	1 pcs
Operating voltage circuit breaker	60V DC
Rated Current at 30 °C	20 A
Rated Switching Capacity	10 kA DC (EN 60898)
CB cross section max	25 mm²
Tripping Characteristic	C
Thermal Trips / Limiting test	22.6 A (1.13 x IN, IEC/EN 60898-1)
Thermal Trips Test min	29 A
Electromagnetic Trips / Hold Tripping	100 A (5 x IN, IEC/EN 60898-1)
Latest Tripping Instant	200 A (10 x IN, IEC/EN 60898-1)
Operation temperature circuit breaker	-25 °C ... 55°C

SPD (Surge Protection Device) Data

Surge Protection Device Type	SPD type 1+2 / class I+II
Amount of SPD	1 pcs
SPD Cross section max	25 mm²
Discharge Surge Current Nominal In	12.5 kA
Discharge Current Imax 8/20 us max Nominal	30 kA
Impulse Discharge Current	12.5 kA
Voltage Protection Level Up	≤ 0.4 kA
Operating Voltage SPD	60 V AC / -48V DC
Operating State / Fault Indication	Operating state / fault indication: indicator flag: red/defect green/ok, optional remote signaling contact
Operation temperature surge protection device	-40 °C ... 80°C

Product code	PTTA-16G-18-25-09-16-201-L
Product family	PTTA
Number of remote radio heads (RRH)	6
