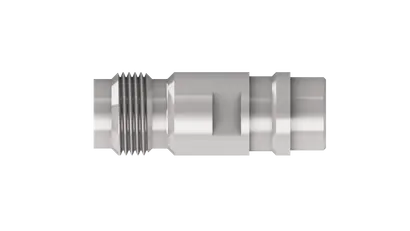

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)
Product number 85207417
Identifier SF_21_SMA-501
Variation: -
Product code
SF_21_SMA-501
Interface type
SMA
Available as assembly only
Yes
Cable group
U98
General Information
Key features
Applicable up to 18 GHz
Specifications
Product configuration
Interface type
SMA
Gender
jack
Standard
IEC 60169-15_MIL-STD-348A/310_CECC 22110
Material data
Centre contact
Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor
Stainless Steel / Passivated (Plating)
Body
Stainless Steel / Passivated (Plating)
Insulator
PTFE (Polytetrafluoroethylene)
Gasket
VMQ (Silicone rubber)
Electrical data
Impedance
50 Ω
Interface frequency
18
GHz
Electrical Data (frequency related)
Frequency range
Return loss
VSWR
0 GHz ... 18 GHz
24.9 dB
1.12
Mechanical data
Weight
11.7
g
Mating cycles
500
Cable entry centre contact
soldered
Cable entry outer contact
soldered
Environmental data
Operation temperature
-55 °C ... 125 °C
Ingress protection (IP Rating)
Mated / IP67
Suitable cables
Cable group
U98 - SUCOFLEX
Suitable cables
SUCOFLEX_526
