Connectors & Adapters
Coaxial connectors

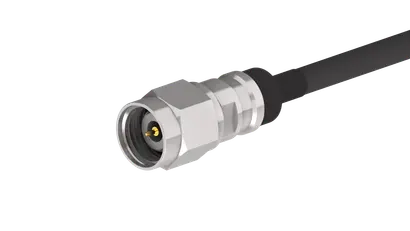

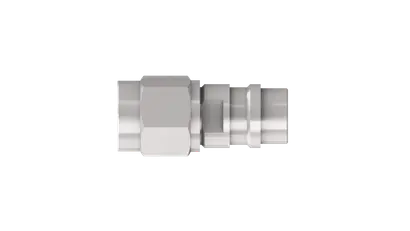

COAXIAL CONNECTOR, PC 2.4, 50 Ohm, Straight cable plug (male)
COAXIAL CONNECTOR, PC 2.4, 50 Ohm, Straight cable plug (male)
Product number 85194484
Identifier SF_11_PC24-506
Variation: -
Product code
SF_11_PC24-506
Interface type
PC 2.4
Available as assembly only
Yes
General Information
Key features
Applicable up to 40 GHz
Specifications
Product configuration
Interface type
PC 2.4
Gender
plug
Standard
IEC-60169-38
Material data
Centre contact
Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor
Stainless Steel / Passivated (Plating)
Body
Stainless Steel / Passivated (Plating)
Insulator
LCP (Liquid crystal polymer)
Coupling nut
Stainless Steel / Passivated (Plating)
Electrical data
Impedance
50 Ω
Interface frequency
40
GHz
Electrical Data (frequency related)
Frequency range
Return loss
VSWR
0 GHz ... 40 GHz
20.8 dB
1.2
Mechanical data
Weight
12
g
Mating cycles
500
Cable entry centre contact
soldered
Cable entry outer contact
soldered
Environmental data
Operation temperature
-40 °C ... 85 °C
Suitable cables
Suitable cables
SUCOFLEX_540_E
