Connectors & Adapters
Coaxial connectors

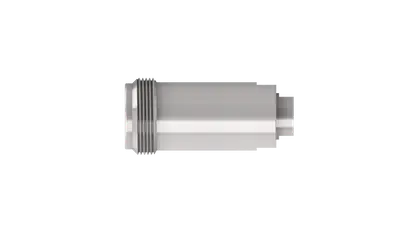

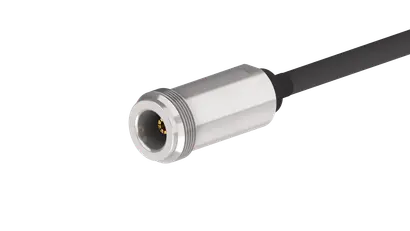

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)
COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)
Product number 85104133
Identifier SF_21_N-501
Variation: -
Product code
SF_21_N-501
Interface type
N
Available as assembly only
Yes
Cable group
U98
General Information
Key features
Applicable up to 18 GHz
Specifications
Product configuration
Interface type
N
Gender
jack
Standard
IEC 60169-16_MIL-STD-348A/304_CECC 22210
Material data
Centre contact
Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor
Stainless Steel / Passivated (Plating)
Body
Stainless Steel / Passivated (Plating)
Insulator
PTFE (Polytetrafluoroethylene)
Gasket
VMQ (Silicone rubber)
Electrical data
Impedance
50 Ω
Interface frequency
18
GHz
Electrical Data (frequency related)
Frequency range
Return loss
VSWR
0 GHz ... 18 GHz
24.9 dB
1.12
Mechanical data
Weight
28
g
Mating cycles
500
Cable entry centre contact
soldered
Cable entry outer contact
soldered
Environmental data
Operation temperature
-55 °C ... 73 °C
Ingress protection (IP Rating)
Mated / IP67
Suitable cables
Cable group
U98 - SUCOFLEX
Suitable cables
SUCOFLEX_526_S
