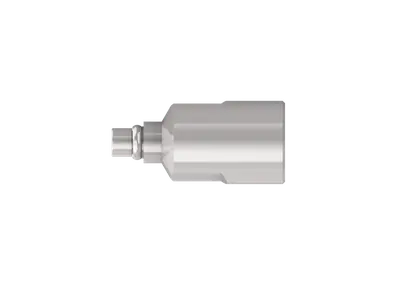

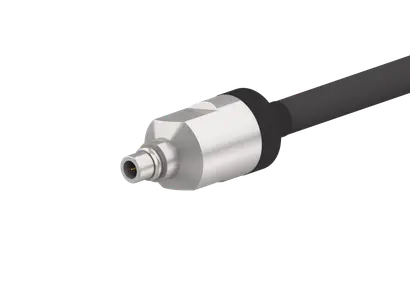

COAXIAL CONNECTOR, MMPX, 50 Ohm, Straight cable plug (male)

Product number 85097498

Identifier SF_11_MMPX-201

Variation: -

Key features

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Frequency range	Return loss	VSWR
0 GHz ... 40 GHz	19 dB	1.25

Mechanical data

Environmental data

Suitable cables

Interface type	MMPX
Gender	plug
Standard	HUBER+SUHNER MMPX STD (Patent US 7.294.023)

Centre contact	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Body	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Insulator	PFA / PTFE

Impedance	50 Ω
Interface frequency	40 GHz
