Connectors & Adapters
Coaxial connectors

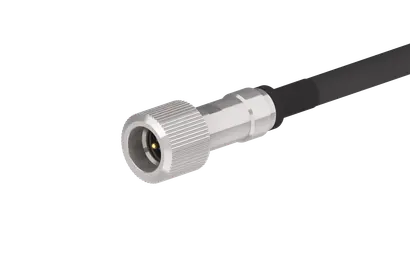

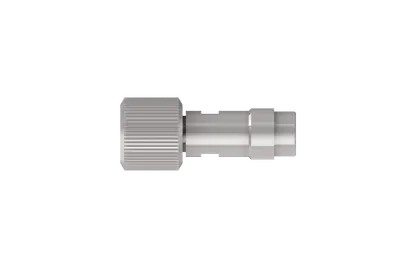

COAXIAL CONNECTOR, SK, 50 Ohm, Straight cable plug (male)
COAXIAL CONNECTOR, SK, 50 Ohm, Straight cable plug (male)
Product number 85012204
Identifier SF_11_SK-253
Variation: -
Product code
SF_11_SK-253
Interface type
SK
Available as assembly only
Yes
Cable group
U98
General Information
Key features
Applicable up to 40 GHz
Quicklock nut
Specifications
Product configuration
Interface type
SK
Gender
plug
Standard
MIL-STD-348A/323
Material data
Centre contact
Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor
Stainless Steel / Passivated (Plating)
Body
Stainless Steel / Passivated (Plating)
Insulator
PPE (Polyphenylene ether, PPO)
Coupling nut
Stainless Steel / Passivated (Plating)
Electrical data
Impedance
50 Ω
Interface frequency
40
GHz
Electrical Data (frequency related)
Frequency range
Return loss
VSWR
0 GHz ... 40 GHz
20.83 dB
1.2
Mechanical data
Weight
0.007
kg
Mating cycles
500
Cable entry centre contact
plugged
Cable entry outer contact
soldered
Environmental data
Operation temperature
-55 °C ... 125 °C
Suitable cables
Cable group
U98 - SUCOFLEX
Suitable cables
SUCOFLEX_102_E
Additional cables
similar to SF_11_SK-252, but with quick-lock nut !
