Connectors & Adapters
Coaxial connectors

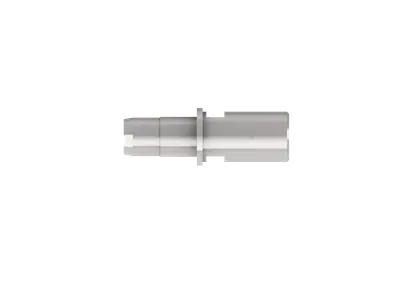

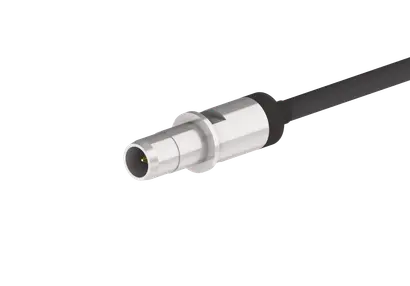

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)
COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)
Product number 85006045
Identifier SF_14_BMA-404
Variation: -
Product code
SF_14_BMA-404
Interface type
BMA
Available as assembly only
Yes
Cable group
U98
General Information
Key features
Applicable up to 18 GHz
Specifications
Product configuration
Interface type
BMA
Gender
plug
Standard
IEC 60169-33_MIL-STD-348A/321
Material data
Centre contact
Copper Beryllium Alloy / Gold Plating (without Nickel underplating)
Outer conductor
Stainless Steel / Passivated (Plating)
Body
Stainless Steel / Passivated (Plating)
Insulator
PFA / PTFE
Electrical data
Impedance
50 Ω
Electrical Data (frequency related)
Frequency range
Return loss
VSWR
0 GHz ... 18 GHz
22.61 dB
1.16
Mechanical data
Weight
0.006
kg
Mating cycles
1000
Cable entry centre contact
soldered
Cable entry outer contact
soldered
Environmental data
Operation temperature
-65 °C ... 125 °C
Suitable cables
Cable group
U98 - SUCOFLEX
Suitable cables
SUCOFLEX_126_E
