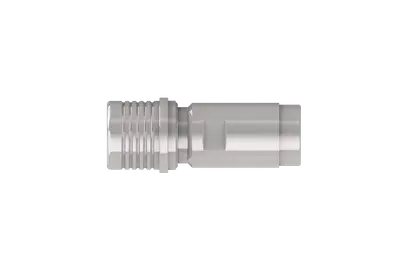

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)
COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)
Product number 84039034
Identifier SF_11_QMA-W401
Variation: -
Product code
SF_11_QMA-W401
Interface type
QMA
Available as assembly only
Yes
Cable group
U98
General Information
Key features
Applicable up to 6 GHz
Specifications
Product configuration
Interface type
QMA
Gender
plug
Standard
Suhner-QMA-W
Material data
Centre contact
Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor
Stainless Steel / Passivated (Plating)
Body
Stainless Steel / Passivated (Plating)
Insulator
PFA / PTFE
Gasket
VMQ (Silicone rubber)
Electrical data
Impedance
50 Ω
Interface frequency
6
GHz
Electrical Data (frequency related)
Frequency range
Return loss
VSWR
0 GHz ... 6 GHz
29 dB
1.07
Mechanical data
Mating cycles
500
Cable entry centre contact
soldered
Cable entry outer contact
soldered
Environmental data
Operation temperature
-65 °C ... 125 °C
Ingress protection (IP Rating)
Mated / IP68
Suitable cables
Cable group
U98 - SUCOFLEX
Suitable cables
SUCOFLEX_104_D
