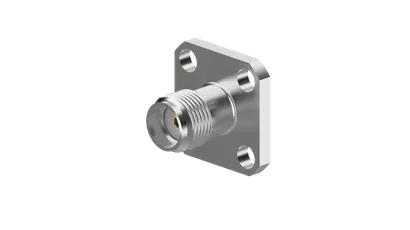

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel receptacle, jack (female), flange mount

Name: COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel receptacle, jack (female), flange mount
SKU: 84029993
Availability: InStock

Product number 84029993

Identifier 23_SMA-50-0-71/199_NH

Variation: Bulk packaging

Key features

Product configuration

Material data

Electrical data

Mechanical data

Environmental data

Product code	23_SMA-50-0-71/199_N
Interface type	SMA
Connector type	Straight panel receptacle jack, flange mount
Flange type	square flange / 12.7 X 12.7

Centre contact	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor	Stainless Steel
Body	Stainless Steel
Insulator	PFA / PTFE

Impedance	50 Ω
Interface frequency	18 GHz
