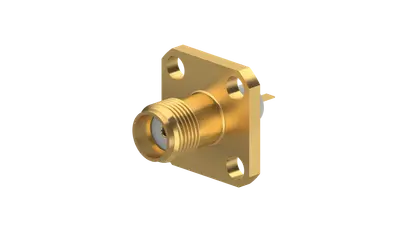

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel receptacle, jack (female), flange mount

Name: COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel receptacle, jack (female), flange mount
SKU: 23034576
Availability: InStock

Product number 23034576

Identifier 23_SMA-50-0-284/111_UY

Variation: Tray packaging

Key features

Product configuration

Material data

Electrical data

Mechanical data

Environmental data

Product code	23_SMA-50-0-284/111_U
Interface type	SMA
Connector type	Straight panel receptacle jack, flange mount
Flange type	square flange / 12.7 X 12.7

Centre contact	Copper Beryllium Alloy / Gold Plating (without Nickel underplating)
Outer conductor	Copper Beryllium Alloy / Gold Plating (without Nickel underplating)
Body	Copper Beryllium Alloy / Gold Plating (without Nickel underplating)
Insulator	PFA / PTFE

Impedance	50 Ω
Interface frequency	18 GHz
