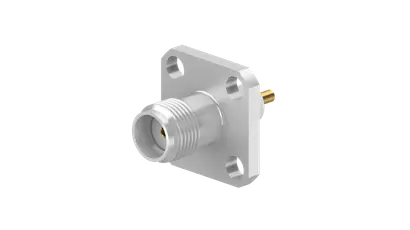

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel receptacle, jack (female), flange mount

Name: COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel receptacle, jack (female), flange mount
SKU: 23030310
Availability: InStock

Product number 23030310

Identifier 23_SMA-50-0-272/133_NH

Variation: Bulk packaging

Key features

Product configuration

Material data

Electrical data

Mechanical data

Environmental data

Product code	23_SMA-50-0-272/133_N
Interface type	SMA
Connector type	Straight panel receptacle jack, flange mount
Flange type	square flange / 12.7 X 12.7

Centre contact	Copper Beryllium Alloy / SUCOPRO Plating
Outer conductor	Brass / SUCOPLATE (R) Plating
Body	Brass / SUCOPLATE (R) Plating
Insulator	PFA / PTFE

Impedance	50 Ω
Interface frequency	18 GHz
