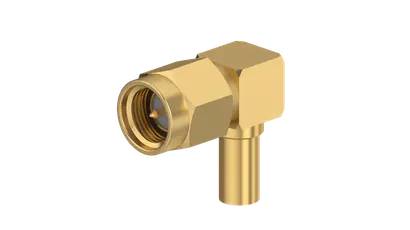

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

Product number 23015403

Identifier 16_SMA-50-2-107/111_NH-1

Variation: Bulk packaging

General Information

Key features

Excellent return loss
Intermateable with PC3.5and SK
Applicable in frequencies up to 18 GHz

Specifications

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Mechanical data

Environmental data

Suitable cables

Product code	16_SMA-50-2-107/111_N_-1
Interface type	SMA
Available as assembly only	No
Cable group	U4

Interface type	SMA
Gender	plug
Standard	IEC 60169-15_MIL-STD-348A/310_CECC 22110

Centre contact	Brass / SUCOPRO Plating
Outer conductor	Brass / SUCOPRO Plating
Body	Brass / SUCOPRO Plating
Insulator	PFA / PTFE
Coupling nut	Brass / SUCOPRO Plating
Gasket	VMQ (Silicone rubber)
Crimp ferrule	Copper / SUCOPRO Plating

Impedance	50 Ω
Interface frequency	18 GHz

Weight	0.0046 kg
Mating cycles	500
Cable entry centre contact	soldered
Cable entry outer contact	crimped
