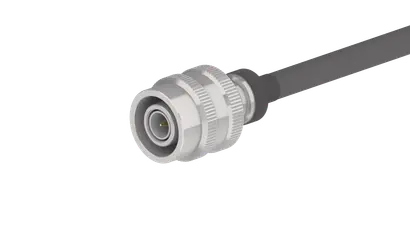

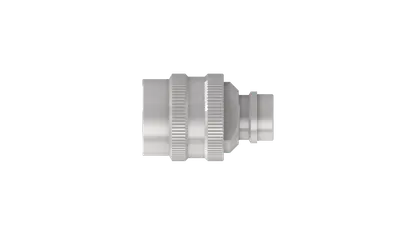

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

Product number 22650577

Identifier SF_11_TNC-418

Variation: -

Key features

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Frequency range	Return loss	VSWR
0 GHz ... 12.4 GHz	23.7 dB	1.14
12.4 GHz ... 18 GHz	21.6 dB	1.181

Mechanical data

Environmental data

Suitable cables

Centre contact	Copper Beryllium Alloy / Gold Plating (without Nickel underplating)
Outer conductor	Stainless Steel / Passivated (Plating)
Body	Stainless Steel / Passivated (Plating)
Insulator	PFA / PTFE
Coupling nut	Stainless Steel / Passivated (Plating)

Cable group	U98 - SUCOFLEX
Suitable cables	SUCOFLEX_104
