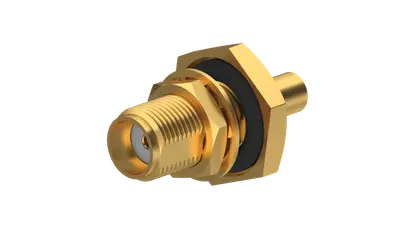

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

Product number 22648727

Identifier 24_SMA-50-2-100/111_NE

Variation Single packaging

General Information

Key features

Excellent return loss
Intermateable with PC3.5and SK
Applicable in frequencies up to 18 GHz

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

Related products

Suitable cables

Flexible (RG405) 50 Ohm, 40 GHz, 165°C, ø2.65 mm, FEP jacket

22511965

MULTIFLEX_86

-

Flexible (RG405) 50 Ohm, 67 GHz, 165°C, ø2.65 mm, FEP jacket

84129072

MULTIFLEX_86_HE

-

Hand formable (RG403) 50Ohm, 6GHz, 165°C, ø2.5mm, FEP jacket

84016948

SUCOFORM_86-TC_FEP

-

Hand formable (RG403) 50Ohm, 40GHz, 85°C, ø3.2mm LSFH jacket

22512147

SUCOFORM_86_LSFH

-

Hand formable (RG403) 50Ohm, 40GHz, 85°C, ø3.2 mm, PE jacket

22511631

SUCOFORM_86_PE

-

Hand formable (RG403) 50Ohm, 40GHz, 165°C, ø2.1mm, no jacket

22511613

SUCOFORM_86

-

Hand formable (RG403) 50Ohm, 40GHz, 165°C, ø2.1mm, no jacket

84084633

SUCOFORM_86_CU

-

Hand formable (RG403) 50Ohm, 40GHz, 165°C, ø2.5mm FEP jacket

22511942

SUCOFORM_86_FEP

-

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Aluminium/Tin plated, M17

22810167

SR_86_AL_TP_M17_COIL

Coil

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Aluminium/Tin plated, M17

22820167

SR_86_AL_TP_M17_2M

2 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Aluminium/Tin plated, M17

22830167

SR_86_AL_TP_M17_3M

3 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper, M17

22810173

SR_86_M17_Coil

Coil

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper, M17

22820173

SR_86_M17_2M

2 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper, M17

22830173

SR_86_M17_3M

3 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Silver plated

22810180

SR_86_CU_SP_COIL

Coil

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Silver plated

22820180

SR_86_CU_SP_2M

2 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Silver plated

22830180

SR_86_CU_SP_3M

3 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Tin plated, M17

22810175

SR_86_TP_M17_COIL

Coil

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Tin plated, M17

22810182

SR_86_CU_TP_M17_COIL

Coil

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Tin plated, M17

22820175

SR_86_TP_M17_2M

2 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Tin plated, M17

22820182

SR_86_CU_TP_M17_2M

2 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Tin plated, M17

22830175

SR_86_TP_M17_3M

3 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Tin plated, M17

22830182

SR_86_CU_TP_M17_3M

3 meter

Product code	24_SMA-50-2-100/111_N
Interface type	SMA-26.5GHz
Available as assembly only	No
Cable group	Y3 Y16 Y11
