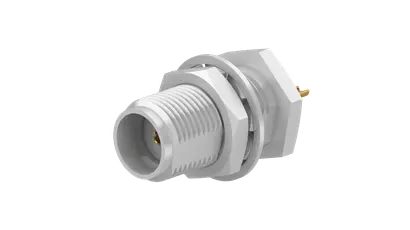

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead receptacle, jack (female)

Name: COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead receptacle, jack (female)
SKU: 22643518
Availability: InStock

Product number 22643518

Identifier 22_SMA-50-0-44/133_NE

Variation: Single packaging

Key features

Product configuration

Material data

Electrical data

Mechanical data

Environmental data

Product code	22_SMA-50-0-44/133_N
Interface type	SMA
Connector type	Straight bulkhead receptacle jack
Flange type	hexagonal flange / hex 8

Centre contact	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor	Brass / SUCOPLATE (R) Plating
Body	Brass / SUCOPLATE (R) Plating
Insulator	PFA / PTFE
Fastening nut	Brass / SUCOPLATE (R) Plating
Washer	Bronze / SUCOPLATE (R) Plating

Impedance	50 Ω
Interface frequency	18 GHz
