Connectors & Adapters
Coaxial connectors

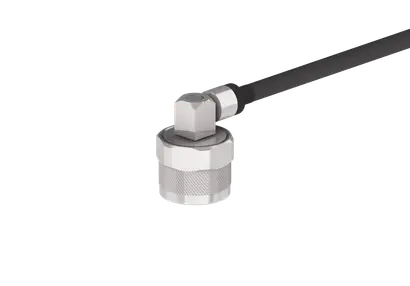

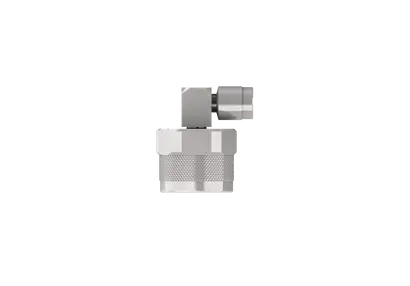

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)
COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)
Product number 22642872
Identifier SF_16_N-44
Variation: -
Product code
SF_16_N-44
Interface type
N
Available as assembly only
Yes
Cable group
U98
General Information
Key features
Applicable up to 18 GHz
Specifications
Product configuration
Interface type
N
Gender
plug
Standard
IEC 60169-16_MIL-STD-348A/304_CECC 22210
Material data
Centre contact
Copper Beryllium Alloy / Gold Plating (without Nickel underplating)
Outer conductor
Stainless Steel / Passivated (Plating)
Body
Stainless Steel / Passivated (Plating)
Insulator
PFA / PTFE
Coupling nut
Brass / SUCOPLATE (R) Plating
Gasket
VMQ (Silicone rubber)
Electrical data
Impedance
50 Ω
Interface frequency
18
GHz
Electrical Data (frequency related)
Frequency range
Return loss
VSWR
0 GHz ... 12.4 GHz
23.69 dB
1.14
12.4 GHz ... 18 GHz
21.66 dB
1.18
Mechanical data
Weight
0.037
kg
Mating cycles
500
Cable entry centre contact
plugged
Cable entry outer contact
soldered
Environmental data
Operation temperature
-65 °C ... 125 °C
Ingress protection (IP Rating)
Mated / IP65
Suitable cables
Cable group
U98 - SUCOFLEX
Suitable cables
SUCOFLEX_104_I
