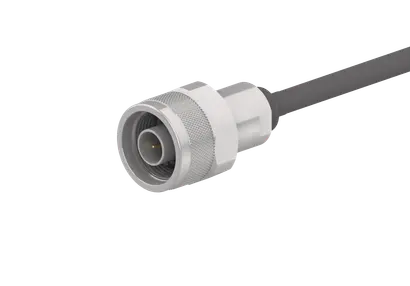

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)
COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)
Product number 22642451
Identifier SF_11_N-47
Variation: -
Product code
SF_11_N-47
Interface type
N
Available as assembly only
Yes
Cable group
U98
General Information
Key features
Applicable up to 18 GHz
Specifications
Product configuration
Interface type
N
Gender
plug
Standard
IEC 60169-16_MIL-STD-348A/304_CECC 22210
Material data
Centre contact
Brass / Gold Plating (without Nickel underplating)
Outer conductor
Stainless Steel / Passivated (Plating)
Body
Stainless Steel / Passivated (Plating)
Insulator
PFA / PTFE
Coupling nut
Brass / SUCOPLATE (R) Plating
Gasket
VMQ (Silicone rubber)
Electrical data
Impedance
50 Ω
Interface frequency
18
GHz
Electrical Data (frequency related)
Frequency range
Return loss
VSWR
0 GHz ... 15 GHz
25 dB
1.12
15 GHz ... 18 GHz
22 dB
1.16
Mechanical data
Weight
0.031
kg
Mating cycles
500
Cable entry centre contact
soldered
Cable entry outer contact
soldered
Environmental data
Operation temperature
-65 °C ... 125 °C
Ingress protection (IP Rating)
Mated / IP65
Suitable cables
Cable group
U98 - SUCOFLEX
Suitable cables
SUCOFLEX_126_E
