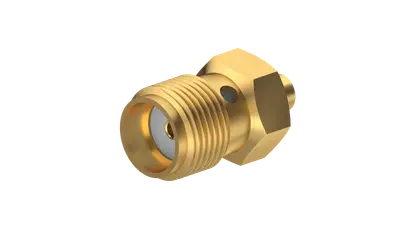

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

Name: COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)
SKU: 22642386
Availability: InStock

Product number 22642386

Identifier 21_SMA-50-1-2/111_NE

Variation: Single packaging

Key features

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Mechanical data

Environmental data

Suitable cables

Centre contact	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Body	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Insulator	PFA / PTFE

Impedance	50 Ω
Interface frequency	18 GHz

Cable group	Y2 - 1 mm / 50 Ohm Y15 - 1 mm / 50 Ohm
Suitable cables	SUCOFORM_47_CU
