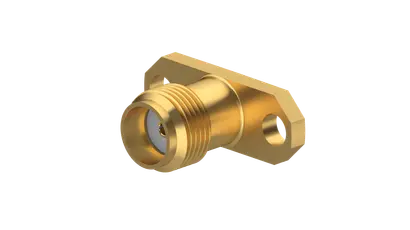

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel receptacle, jack (female), flange mount

Name: COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel receptacle, jack (female), flange mount
SKU: 22640096
Availability: InStock

Product number 22640096

Identifier 23_SMA-50-0-12/111_NE

Variation: Single packaging

Key features

Product configuration

Material data

Electrical data

Mechanical data

Environmental data

Product code	23_SMA-50-0-12/111_N
Interface type	SMA
Connector type	Straight panel receptacle jack, flange mount
Flange type	2-hole flange / 16 X 5.7

Centre contact	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Body	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Insulator	PFA / PTFE

Impedance	50 Ω
Interface frequency	18 GHz
