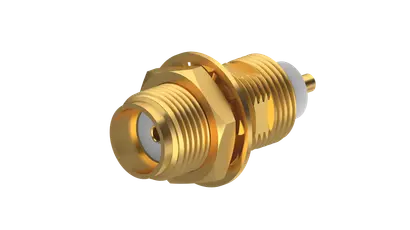

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead receptacle, jack (female)

Name: COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead receptacle, jack (female)
SKU: 22640089
Availability: InStock

Product number 22640089

Identifier 22_SMA-50-0-3/111_NE

Variation: Single packaging

Key features

Product configuration

Material data

Electrical data

Mechanical data

Environmental data

Product code	22_SMA-50-0-3/111_N
Interface type	SMA
Connector type	Straight bulkhead receptacle jack
Flange type	round flange / others

Centre contact	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Body	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Insulator	PFA / PTFE
Fastening nut	Brass / Gold Plating (Nickel underplated)
Washer	Bronze / Gold Plating (Nickel underplated)

Impedance	50 Ω
Interface frequency	18 GHz
