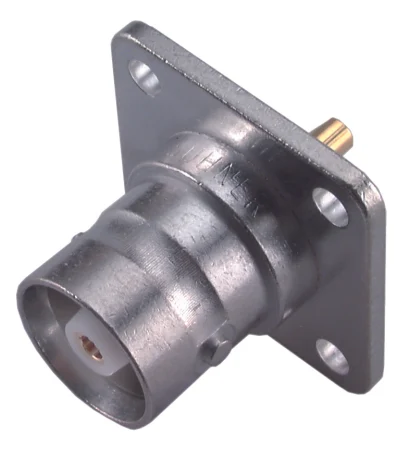

COAXIAL CONNECTOR, C, 50 Ohm, Straight panel receptacle, jack (female), flange mount

Name: COAXIAL CONNECTOR, C, 50 Ohm, Straight panel receptacle, jack (female), flange mount
SKU: 22541226
Availability: InStock

Product number 22541226

Identifier 23_C-50-0-1/133_NE

Variation: Single packaging

Key features

Product configuration

Material data

Electrical data

Mechanical data

Environmental data

Product code	23_C-50-0-1/133_N
Interface type	C
Connector type	Straight panel receptacle jack, flange mount
Flange type	square flange / 25.4 X 25.4

Centre contact	Copper Beryllium Alloy / SUCOPRO / Gold Plating
Outer conductor	Brass / SUCOPLATE (R) Plating
Body	Brass / SUCOPLATE (R) Plating
Insulator	PFA / PTFE

Impedance	50 Ω
Interface frequency	11 GHz
