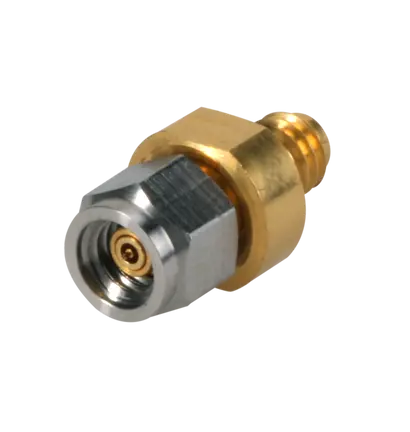

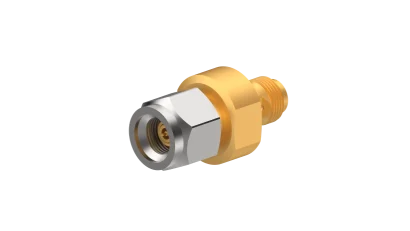

COAXIAL ADAPTER, PC 1, 50 Ohm, plug / jack (male / female)

Name: COAXIAL ADAPTER, PC 1, 50 Ohm, plug / jack (male / female)
SKU: 85031288
Availability: InStock

Product number 85031288

Identifier 33_PC1-50-0-1/11-_UE

Variation: Single packaging

Key features

Product configuration

Interface side 1	PC 1
Gender side 1	plug (male)
Standard side 1	IEEE 287:2007
Centre contact	Copper Beryllium Alloy / Gold Plating (without Nickel underplating)
Outer conductor	Copper Beryllium Alloy / Gold Plating (without Nickel underplating)
Body	Copper Beryllium Alloy / Gold Plating (without Nickel underplating)
Insulator	PEEK (Polyether-etherketone)
Coupling nut	Stainless Steel / Passivated (Plating)
Interface side 2	PC 1
Gender side 2	jack (female)
Standard side 2	IEEE 287:2007
Centre contact	Copper Beryllium Alloy / Gold Plating (without Nickel underplating)
Outer conductor	Copper Beryllium Alloy / Gold Plating (without Nickel underplating)
Body	Copper Beryllium Alloy / Gold Plating (without Nickel underplating)
Insulator	PEEK (Polyether-etherketone)

Electrical data

Electrical Data (frequency related)

Mechanical data

Environmental data

Impedance	50 Ω
Interface frequency	110 GHz

Weight	0.004 kg
Mating cycles	100
