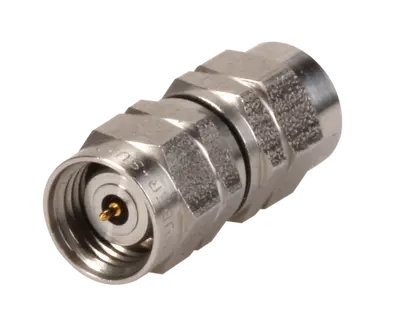

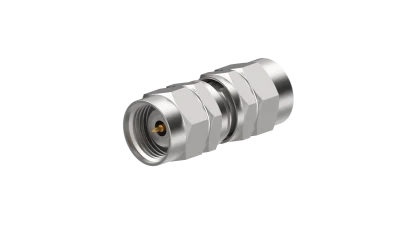

COAXIAL ADAPTER, PC 1.85, 50 Ohm, plug / plug (male / male)

Single packaging

Product configuration

Interface side 1	PC 1.85
Gender side 1	plug (male)
Standard side 1	IEC 60169-32
Centre contact	Copper Beryllium Alloy / SUCOPRO / Gold Plating
Outer conductor	Stainless Steel / Passivated (Plating)
Body	Stainless Steel / Passivated (Plating)
Insulator	LCP (Liquid crystal polymer)
Coupling nut	Stainless Steel / Passivated (Plating)
Interface side 2	PC 1.85
Gender side 2	plug (male)
Standard side 2	IEC 60169-32
Centre contact	Copper Beryllium Alloy / SUCOPRO / Gold Plating
Outer conductor	Stainless Steel / Passivated (Plating)
Body	Stainless Steel / Passivated (Plating)
Insulator	LCP (Liquid crystal polymer)
Coupling nut	Stainless Steel / Passivated (Plating)

Electrical data

Electrical Data (frequency related)

Mechanical data

Environmental data

Impedance	50 Ω
Interface frequency	67 GHz

Weight	0.0052 kg
Mating cycles	500
