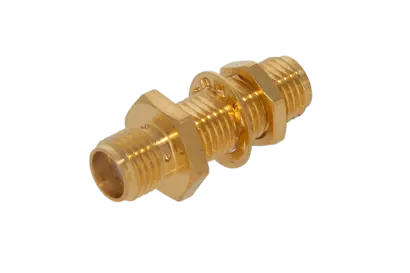

COAXIAL ADAPTER, SMA-26.5GHz, 50 Ohm, Bulkhead, jack / jack (female / female)

Name: COAXIAL ADAPTER, SMA-26.5GHz, 50 Ohm, Bulkhead, jack / jack (female / female)
SKU: 22648732
Availability: InStock

Product number 22648732

Identifier 34_SMA-50-0-100/111_NE

Variation: Single packaging

Key features

Product configuration

Interface side 1	SMA-26.5GHz
Gender side 1	jack (female)
Standard side 1	HUBER+SUHNER-SMA-26.5GHz
Centre contact	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Body	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Insulator	PFA / PTFE
Fastening nut	Brass / Gold Plating (Nickel underplated)
Washer	Bronze / Gold Plating (Nickel underplated)
Interface side 2	SMA-26.5GHz
Gender side 2	jack (female)
Standard side 2	HUBER+SUHNER-SMA-26.5GHz
Centre contact	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Body	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Insulator	PFA / PTFE
Fastening nut	Brass / Gold Plating (Nickel underplated)
Washer	Bronze / Gold Plating (Nickel underplated)
Crimp ferrule	Bronze / Gold Plating (Nickel underplated)

Electrical data

Electrical Data (frequency related)

Mechanical data

Environmental data

Weight	0.0041 kg
Mating cycles	500
