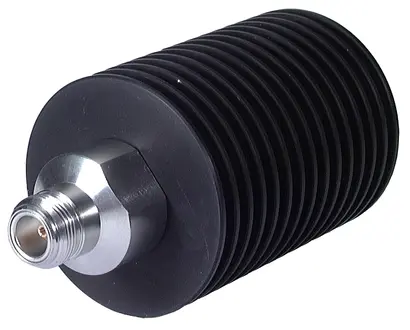

COAXIAL TERMINATION, 50 Ohm, N, jack (female)

Name: COAXIAL TERMINATION, 50 Ohm, N, jack (female)
SKU: 22643801
Availability: InStock

Product number 22643801

Identifier 6560.17.BB

Variation: -

Key features

Material Data

Electrical data

Electrical Data (frequency related)

Electrical Data (power)

Mechanical data

Environmental data

Product code	6560.17.BB
Interfaces	N / jack (female)

Interface	N / jack (female)
Centre contact	Copper Beryllium Alloy / Gold Plating (without Nickel underplating)
Outer contact	Brass / SUCOPLATE (R) Plating
Body	Aluminium / Anodized
Insulator	PFA / PTFE

Average power	60 W at 25 °C ambient temperature. Linearly derated to W at 150 °C ambient temperature.
Peak power	1500 W, 5 µs pulse width, 0.05 % duty cycle
Electrical remarks	Mounted horizontally, convection cooled For input power not exceeding 100 mW, VSWR power coefficient typical 0,005/Watt.
