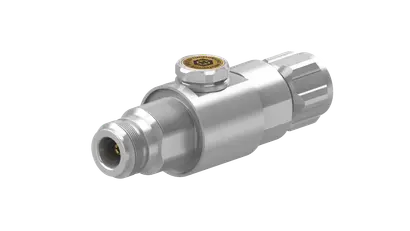

COAXIAL SURGE PROTECTOR DEVICE, GDT technology up to 3 GHz (Platform 3000), with SEMPER GDT 230 V

Name: COAXIAL SURGE PROTECTOR DEVICE, GDT technology up to 3 GHz (Platform 3000), with SEMPER GDT 230 V
SKU: 85247802
Availability: InStock

Product number 85247802

Identifier 3402.17.3004-EX

Variation: -

General Information

Key features

Broadband frequency operation from DC to 3 GHz
Gas discharge tube replaceable and included
DC/AC remote powering via coaxial same cable
Surge current handling capability 30 kA once and 20 kA multiple
Semper self-extinguishing functionality included

Specifications

Product configuration

Interface and material data

Electrical data

Impedance	50 Ω
Frequency frame	0 MHz to 3000 MHz
Return loss typical	≥ 20 dB
Insertion loss typical	≤ 0.3 dB
CW power frame	≤ 150 W
DC current	≤ 2.5 A at 48 V
Turn-off time	20 sec. typically at 2.0 A and 25°C ambient temperature
Recovery time	7 sec. at 25°C ambient temperature
Residual pulse energy (typ.)	350 µJ (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs)
Residual pulse voltage (typ.)	650 V (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs)
Surge current handling capability	30 kA single, 20 kA multiple (test pulse 8/20 µs)

Electrical bands

Electrical remarks

Mechanical data

Environmental data

Product code	3402.17.3004-EX
Product description	GDT technology up to 3.0 GHz

Main path connectors	Port 1: unprotected, N plug (male) Port 2: protected, N jack (female)
Mounting and grounding	MH170 (bulkhead mounting)
Side of bulkhead	protected side
EMP can be install reversed	YES

Housing material / plating	Brass / SUCOPLATE (R) Plating
Center contact, material / plating	Port 1: Copper Beryllium Alloy / Gold Plating (without Nickel underplating) Port 2: Copper Beryllium Alloy / Gold Plating (without Nickel underplating)

Frequency range	0 MHz ... 2000 MHz
Return loss typical	≥ 26 dB
Insertion loss	≤ 0.2 dB
Power avg. / peak	≤150 W / -

Weight	180 g
Mating cycles	500

DC supply voltage	48 V
DC current	2.5 A
Gas tube	Yes DC, GDT included, replaceable, 9071.99.0947 (SEMPER, 230 V)

Operation temperature	-40 °C ... 85 °C
Storage temperature	-40 °C ... 85 °C
Ingress protection (IP Rating)	Mated / IP67, according to IEC 60529
Thermal shock according	MIL-STD-202, Method 107, Cond. B
Vibration according	MIL-STD-202, Method 204, Cond. D
Moisture resistance according	MIL-STD-202, Method 106
