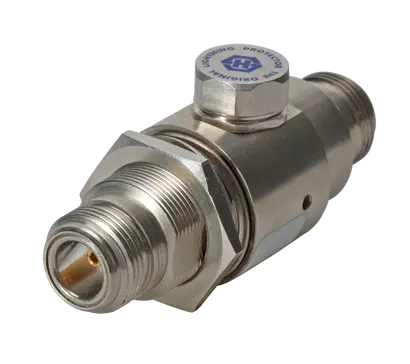

COAXIAL SURGE PROTECTOR DEVICE, GDT technology up to 1.0 GHz, with GDT 470 V

Name: COAXIAL SURGE PROTECTOR DEVICE, GDT technology up to 1.0 GHz, with GDT 470 V
SKU: 84145588
Availability: InStock

Product number 84145588

Identifier 3401.17.0056

Variation: -

Key features

Product configuration

Interface and material data

Electrical data

Electrical remarks

Mechanical data

Environmental data

Main path connectors	Port 1: unprotected, N jack (female) Port 2: protected, N jack (female)
Mounting and grounding	MH12 (bulkhead mounting)
Side of bulkhead	protected side
EMP can be install reversed	YES

Housing material / plating	Brass / SUCOPLATE (R) Plating
Center contact, material / plating	Port 1: Copper Beryllium Alloy / Gold Plating (without Nickel underplating) Port 2: Copper Beryllium Alloy / Gold Plating (without Nickel underplating)

Impedance	50 Ω
Frequency frame	0 MHz to 1000 MHz
Return loss typical	26.44 dB
Insertion loss typical	0.1 dB
CW power frame	586 W
Residual pulse energy (typ.)	750 µJ (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs)
Residual pulse voltage (typ.)	1400 V (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs)
Surge current handling capability	30 kA single, 20 kA multiple (test pulse 8/20 µs)

Weight	109 g
Mating cycles	500

Operation temperature	-40 °C ... 85 °C
Storage temperature	-40 °C ... 85 °C
Ingress protection (IP Rating)	IP67
Thermal shock according	MIL-STD-202, Method 107, Cond. B
Vibration according	MIL-STD-202, Method 204, Cond. D
Moisture resistance according	MIL-STD-202, Method 106

Product code	3401.17.0056
Product description	GDT technology up to 1.0 GHz
