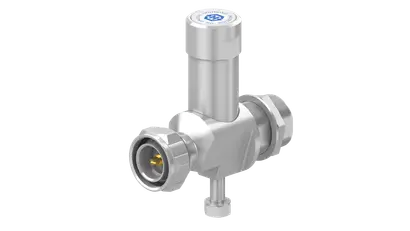

COAXIAL SURGE PROTECTOR DEVICE, Quarter-wave stub technology

Name: COAXIAL SURGE PROTECTOR DEVICE, Quarter-wave stub technology
SKU: 84078690
Availability: InStock

Product number 84078690

Identifier 3400.41.0262

Variation: -

Key features

Product configuration

Interface and material data

Electrical data

Impedance	50 Ω
Frequency frame	690 MHz to 2200 MHz
Return loss typical	≥ 23 dB
Insertion loss typical	≤ 0.15 dB
CW power frame	≤ 1500 W
Peak power frame	≤ 25 kW
PIM 3rd order	-155 dBc max.
Residual pulse energy (typ.)	18 µJ LEMP (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs) 16 mJ (test pulse 80 kA 8/20 µs)
Residual pulse voltage (typ.)	15 V LEMP (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs) 278 V (test pulse 80 kA 8/20 µs)
Surge current handling capability	100 kA single, 80 kA multiple (test pulse 8/20 µs)

Electrical bands

Electrical remarks

Mechanical data

Environmental data

Main path connectors	Port 1: unprotected, 7/16 plug (male) Port 2: protected, 7/16 jack (female)
Mounting and grounding	MH110 (bulkhead mounting), M8 (screw), brk (bracket)
Side of bulkhead	protected side
EMP can be install reversed	YES

Housing material / plating	Brass / SUCOPLATE (R) Plating
Center contact, material / plating	Port 1: Brass / Silver Plating Port 2: Bronze / Silver Plating

Weight	512 g
Mating cycles	500

Operation temperature	-40 °C ... 85 °C
Storage temperature	-40 °C ... 85 °C
Ingress protection (IP Rating)	Mated / IP68, according to IEC 60529
Thermal shock according	MIL-STD-202, Method 107, Cond. B
Vibration according	MIL-STD-202, Method 204, Cond. A
Moisture resistance according	MIL-STD-202, Method 106

Product code	3400.41.0262
Product description	Quarter-wave stub technology
